Architectures - MS Exchange - same server

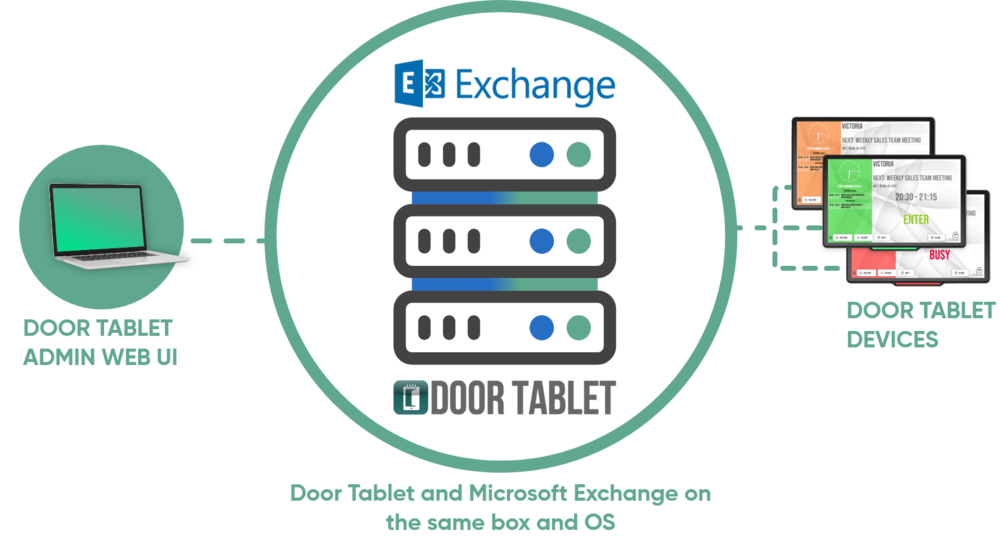

Install the Door Tablet server on the same machine you run Microsoft Exchange without a problem.  This configuration not only saves on hardware but also improves the connection speed between Door Tablet and Exchange.

Create Door Tablet Rooms
If you would like to automate the creation of Door Tablet meeting rooms, read the help document, Prepare Exchange, on how to do this.  Otherwise, you can just create rooms using the room address.

Basic configuration
  1. Find the Exchange EWS URL and set it in the Door Tablet system profile.  As you use the local host, Door Tablet can use that and avoid DNS lookups
  2. Ask for the name and password of an administrator who is assigned full rights to the rooms you wish to use
  3. Set the above details in the Door Tablet system profile
  4. Test the connection

You can enable Door Tablet to automatically read your rooms from Exchange.  For this you will need to ask your Exchange administrator to create a room list group.  This is an easy task but still optional.
Current Architectures
MS Exchange on premise on the server

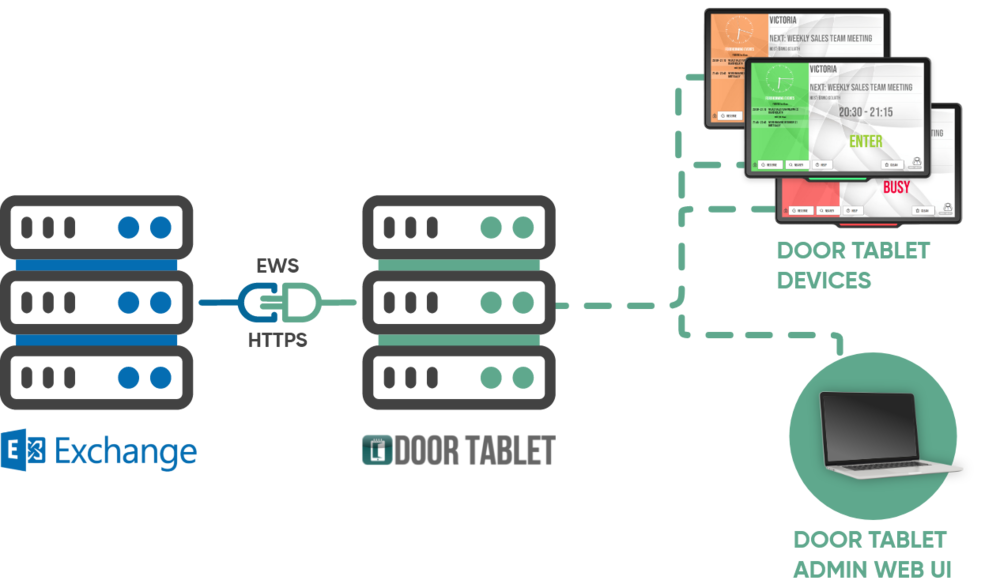

MS Exchange on premise on different servers
MS Office 365 as a complete cloud
MS Office 365 on premise
IBM Domino server
Door Tablet Meeting Center
Google Apps for work
Any Scheduling System using DTSI
Text files (CSV) in shared folder
clients clients clients clients server admin

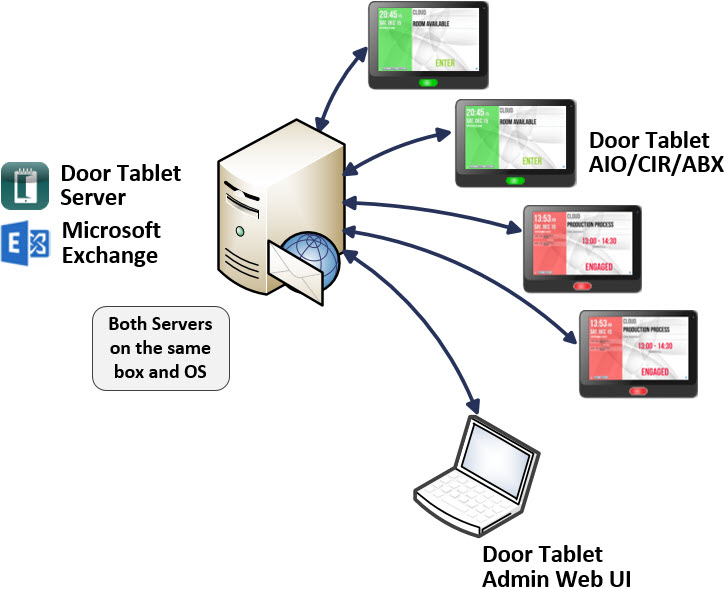

Combined Server
You can run the Door Tablet Server n the same box as your Exchange Server. Install the Door Tablet server and it will not onflict with your Exchange installation. The HTTP task runs on Port 81 by default and other ports may be easily modified
Use a web browser to to administer the Door Tablet server, control tablet functionality and branding at room level and perform all admin functions
Door Tablet Clients
Use a variety of clients to connect to the Door Tablet Server. Use Android tablets, Apple iPads tablets or Microsoft Surface tablets. You can also use any modern browser on any display to connect as a client to the server. Use large TV screens to greet guests and display a room group schedule
