Rooms Setup

To set up rooms to use the Door Tablet LED and Sensor Controller perform the following task:

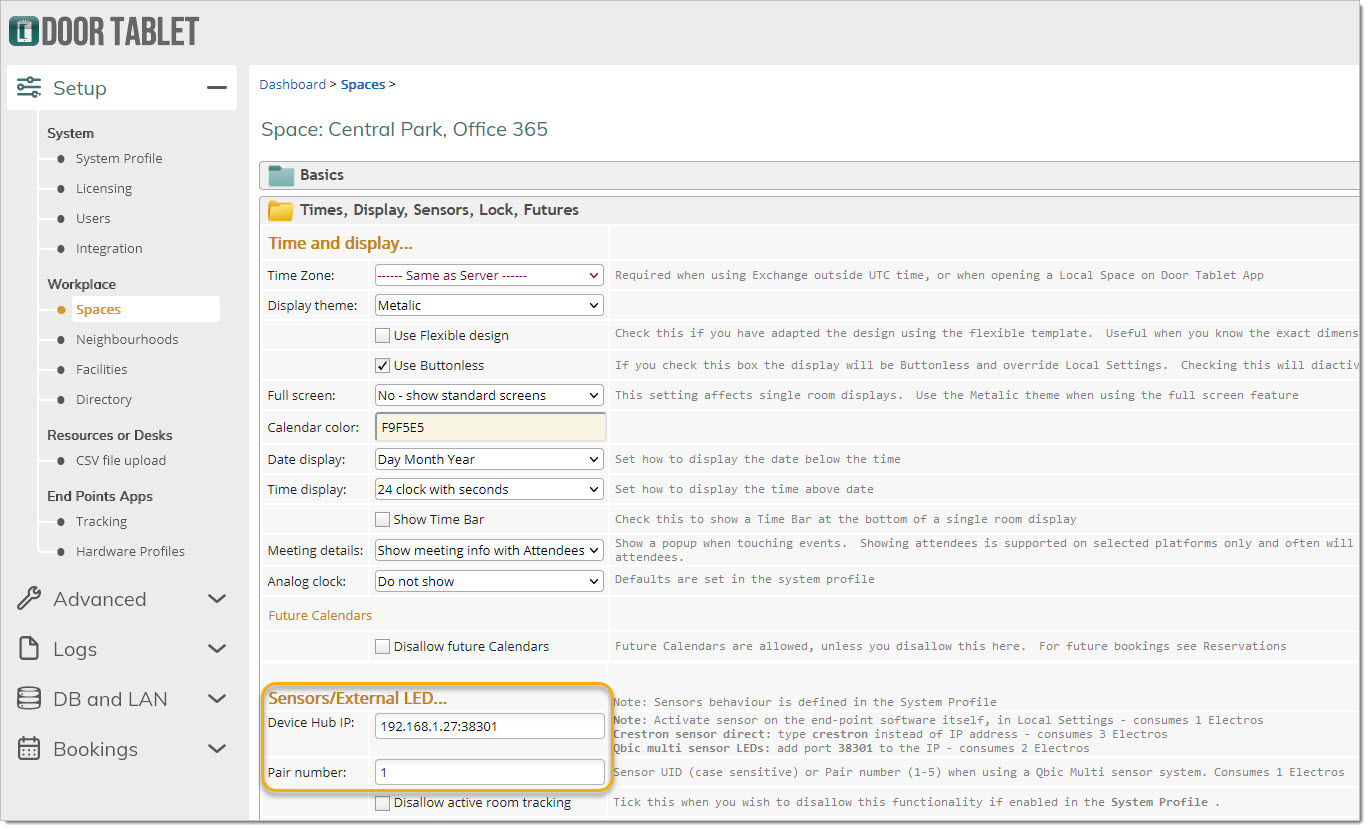

  1. Open a room and insert the IP address of the controller and add the fix port number 38301.
  2. Since Door Tablet offers a number of sensor technologies note that what tells Door Tablet you are using the LED and Sensor Controller is the use of a valid IP address and the port number 38301.
VIDEO: Sensor and LED controller

Setting the Pair
Since each Controller offers 5 pairs of LED and Sensor you must specify the pair number in line with what was deployed by and within the rooms.

You are now ready to complete and test your configuration - this is done on each end-point you install by the rooms. See Database 'Door Tablet HELP', View 'Help Documents', Document 'Rooms Setup'
