Supported Functions

Once you have your NFC tag registered, you can use these for a number of functions. Using settings, you can decide how NFC is used:
  1. Allow self registration - when you allow this, an additional button appears in the single meeting space and cluster display
  2. Automatically approve registrations - when users register their cards this will determine if they need to await approval
  3. Disable a NFC tag - if a tag is lost, stolen or misuse, you can disable it
  4. Reserve a meeting space - a meeting space will be reserved upon presentation of the NFC card and thus identify the owner of the meeting
  5. Extend and terminate a meeting - only the user who booked the meeting space will be able to extend or terminate a meeting
  6. Check-in to a meeting - for pre booked meeting allow check-in using NFC. An email is sent to the meeting originator as to who is the user who checked in to their meeting, although it is expected to often be the same person
  7. Request assistance - using NFC here speeds the process of specifying contact and ID of the requestor. This applies only when the system is set to send emails with requests
  8. Login and log out for administrators - by adding a NFC ID to the server code list

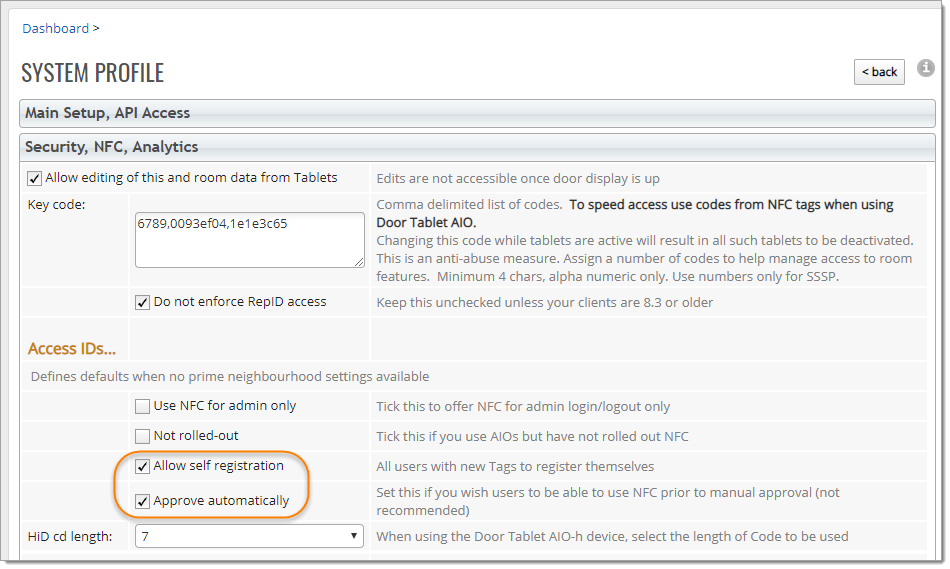

Settings in the System profile:

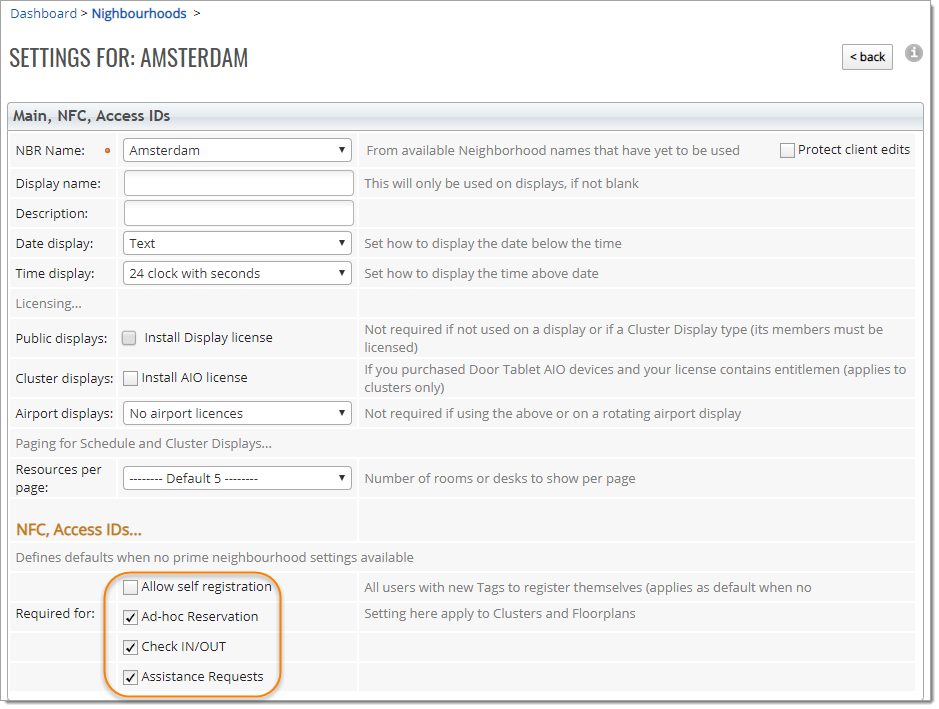

Settings in Neighborhood Settings:

Note: the above settings affect all the resources associated with the area. Reservations related setting apply to Clusters and Floor plans only.

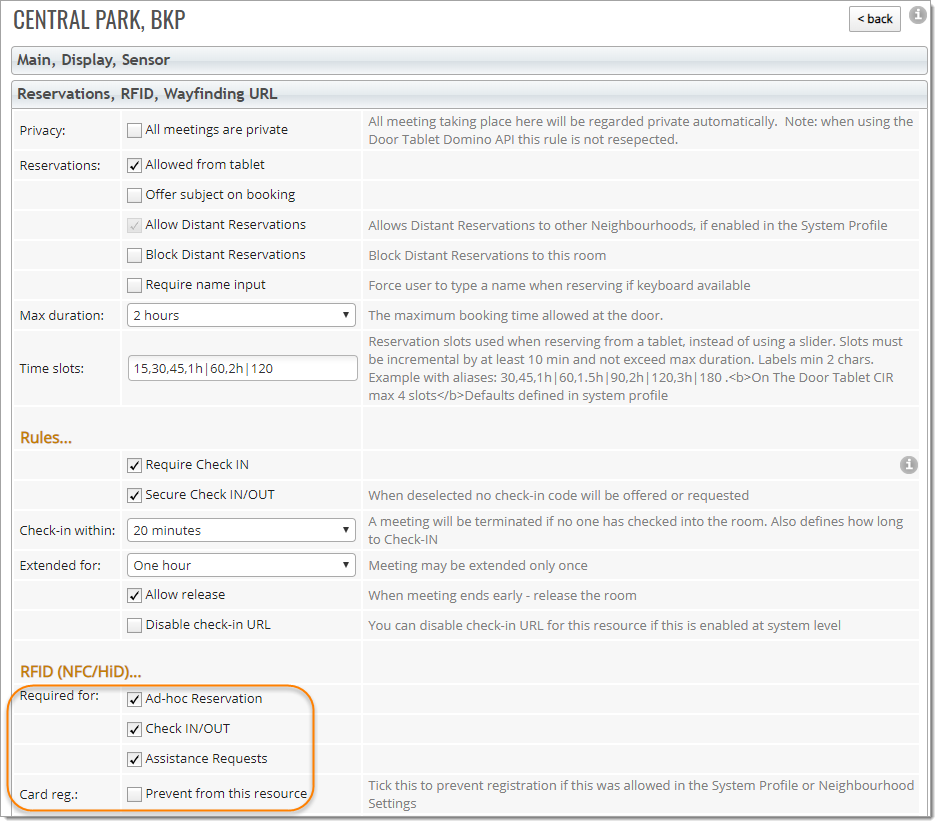

Setting at resource level:


Impact of Settings in the App
Your settings affect the functions available to end users.

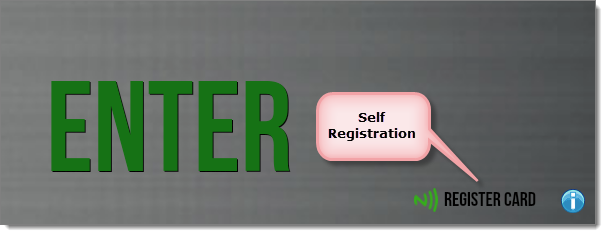

Self Registration

Note: same function appears in Cluster Displays

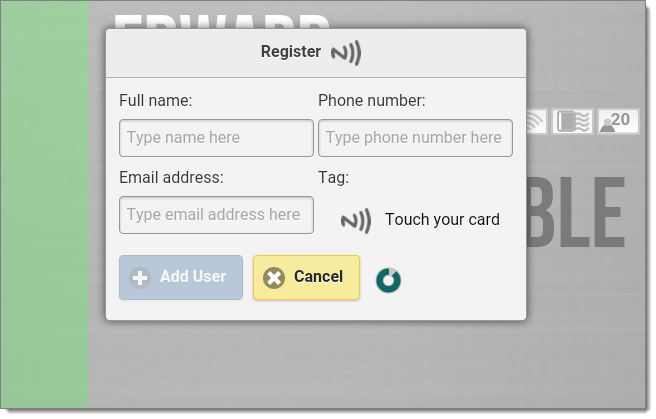

The following pop-up appears:

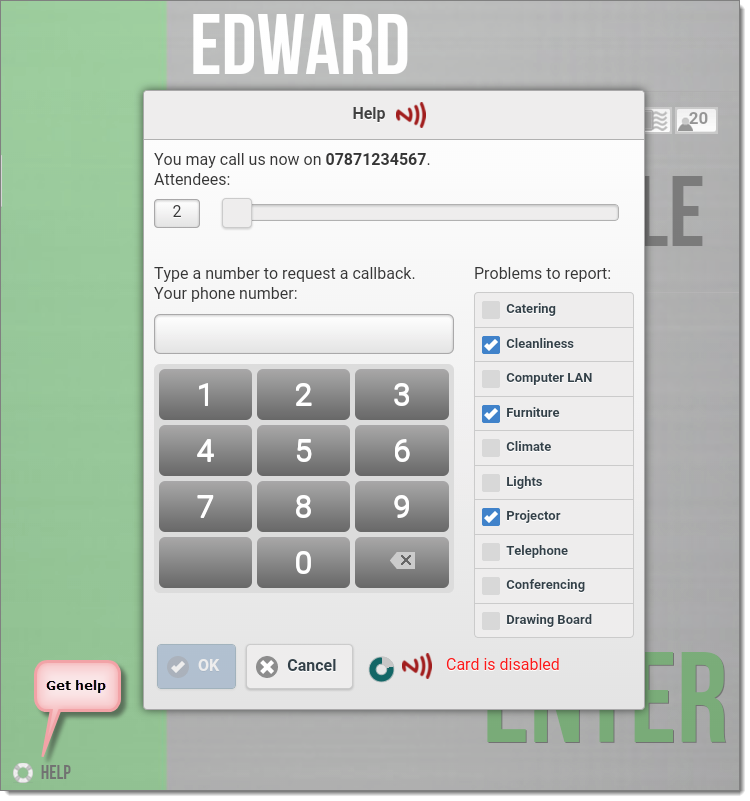

Getting Help: - showing when a card is disabled and request cannot be submitted.

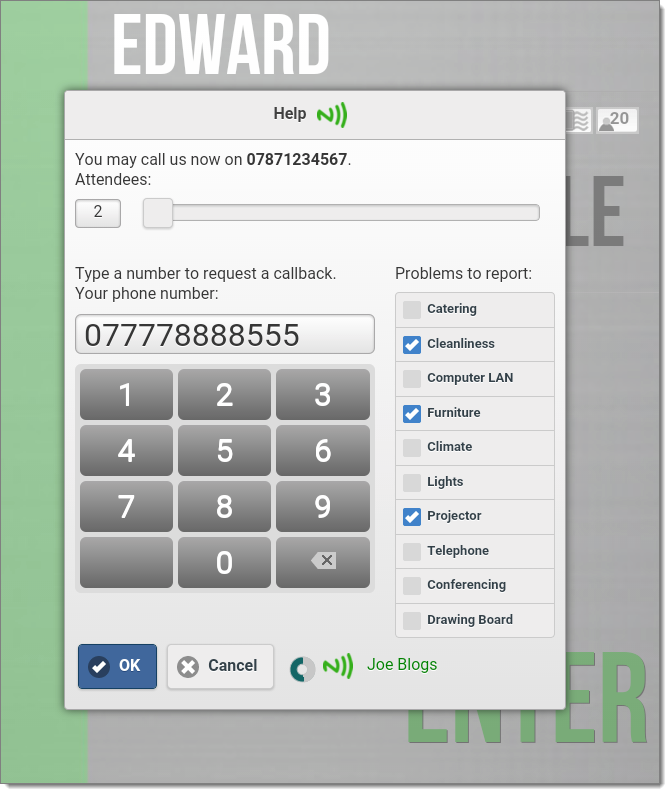

And when all is OK... user's phone number and name are brought from the server and are included in the request.

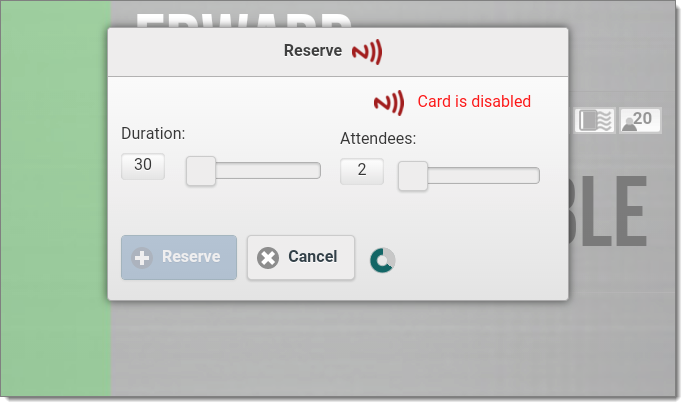

Reservation - showing an attempt by a disabled card:

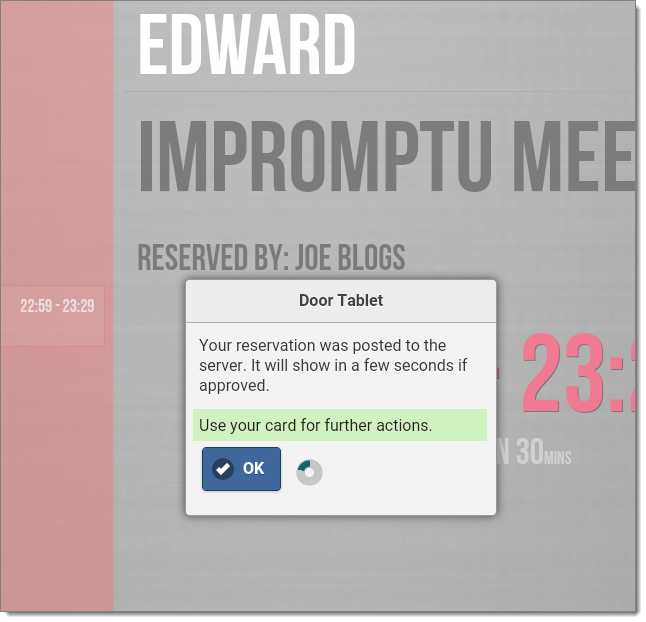

Post submission of reservation with a good card:

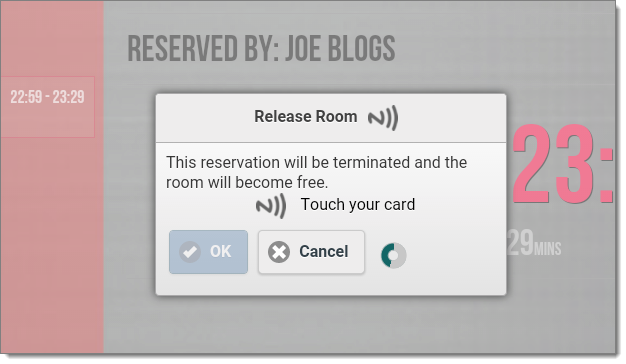

Terminating a meeting early, with a NFC card:

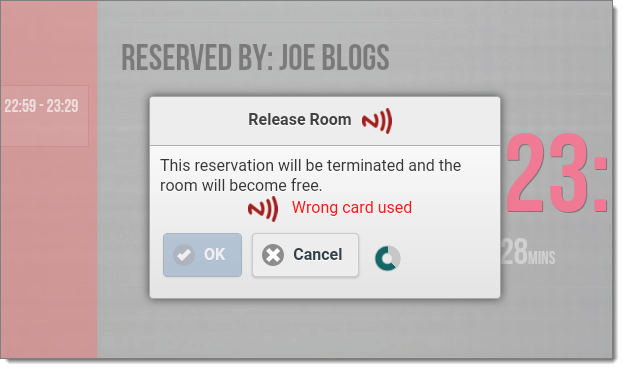

Response when the wrong card is used:


Similar NFC functions apply to Extensions.
