Extracting Logs

The Door Tablet AIO/TC allows you to extract logs from a device for the purpose of troubleshooting.

The steps required are as follows:

  1. Prepare a USB stick
  2. Insert into the device
  3. Navigate to the correct menu option
  4. Save the logs
  5. Review the logs (and email these to us to

Prepare a USB stick
  1. Open the USB stick on your PC/Mac

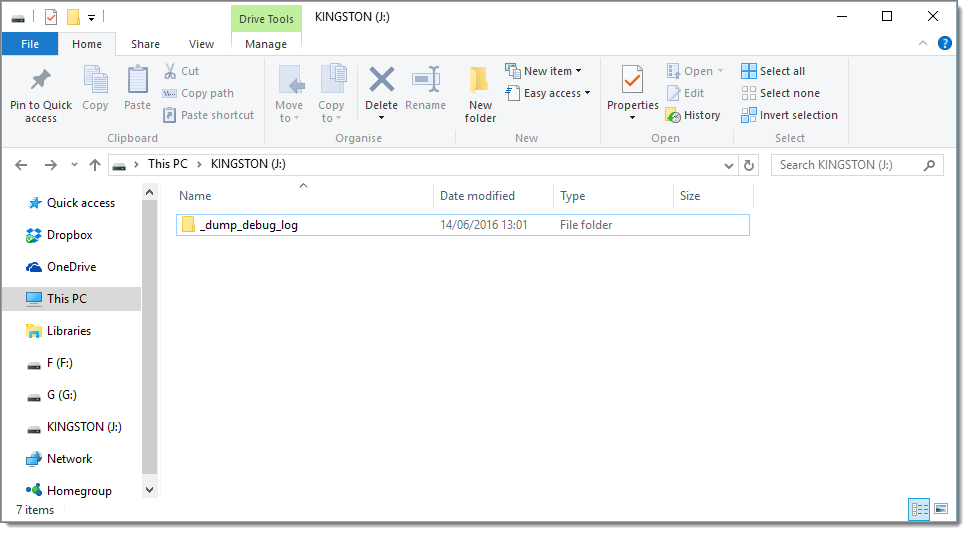

  2. On the root of the device create a folder and name it: _dump_debug_log

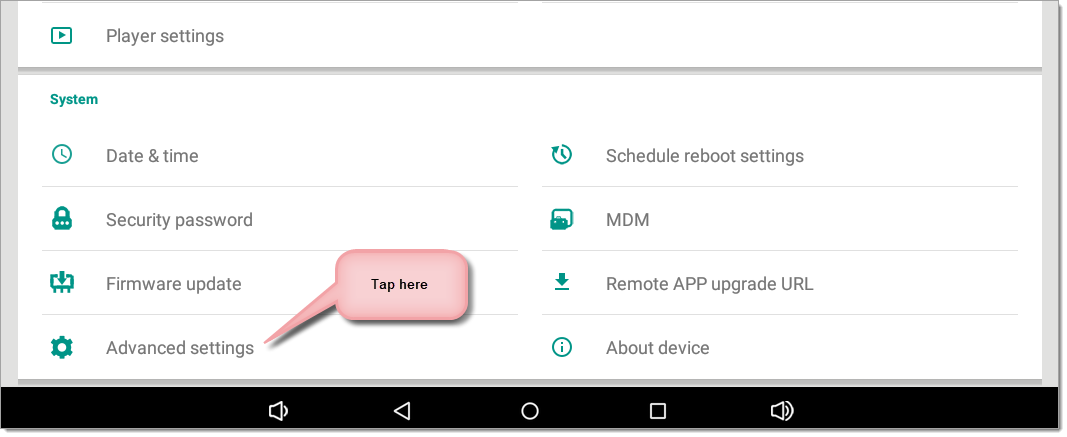

Insert the USB into the Door Tablet AIO/TC and navigate to the log options on Door Tablet AIO/TC:

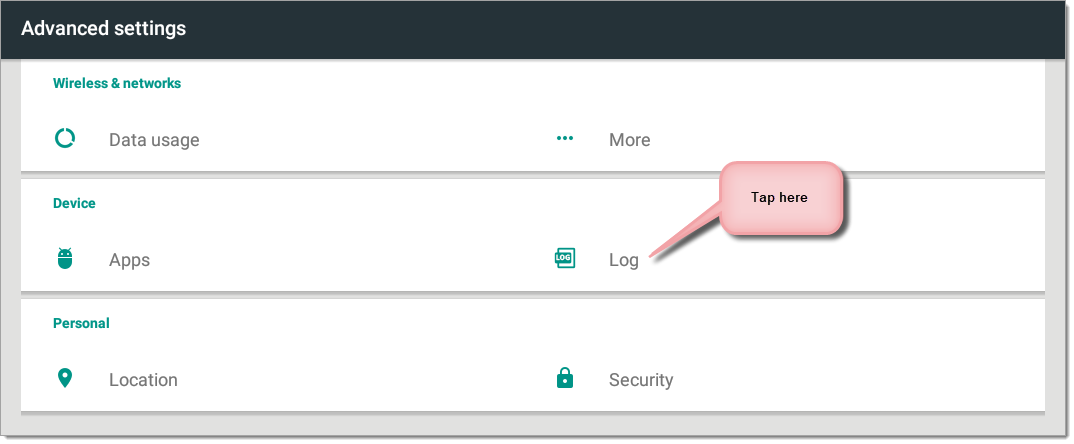

Press the Log button:

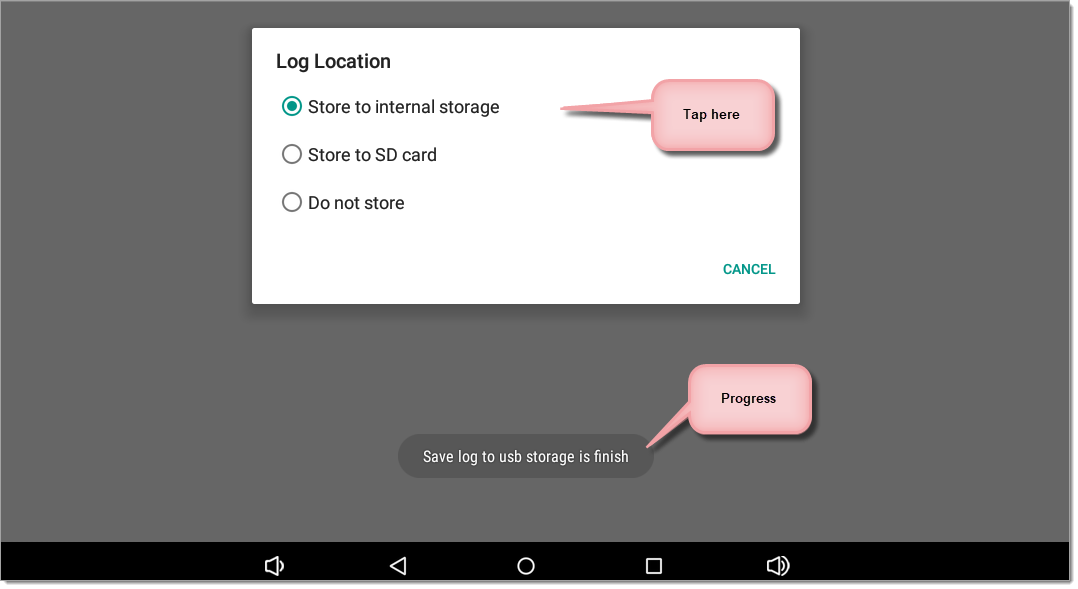

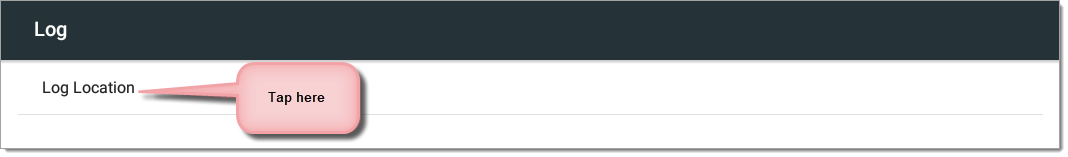

Touch on "Log Location" and "Store to internal storage":

Review the Logs

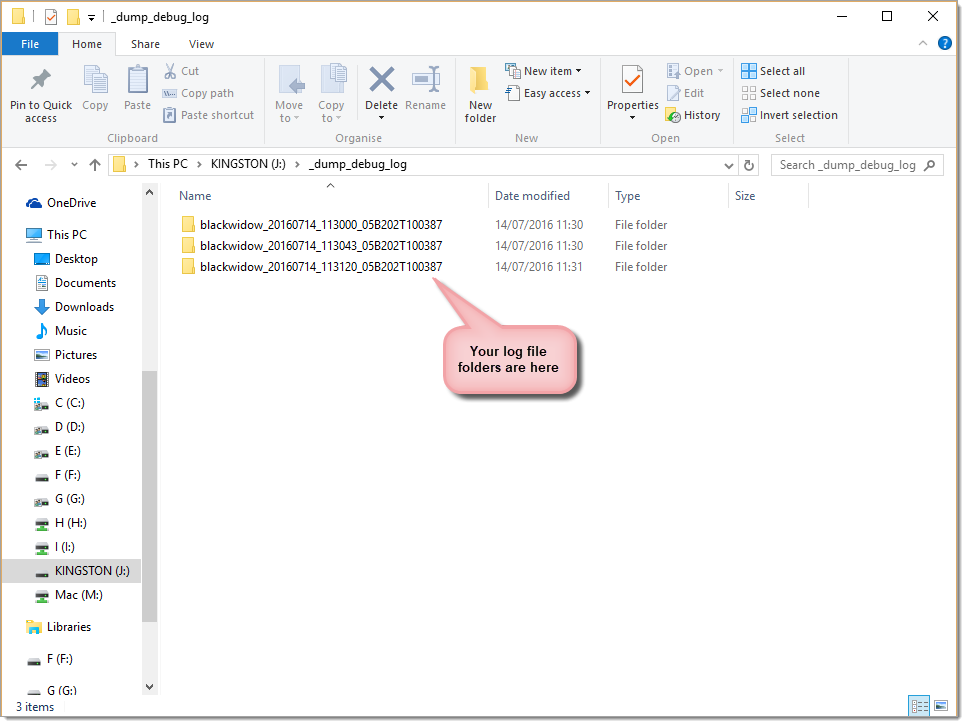

Once the above process is complete, you can review the contents of the folder in the USB drive:

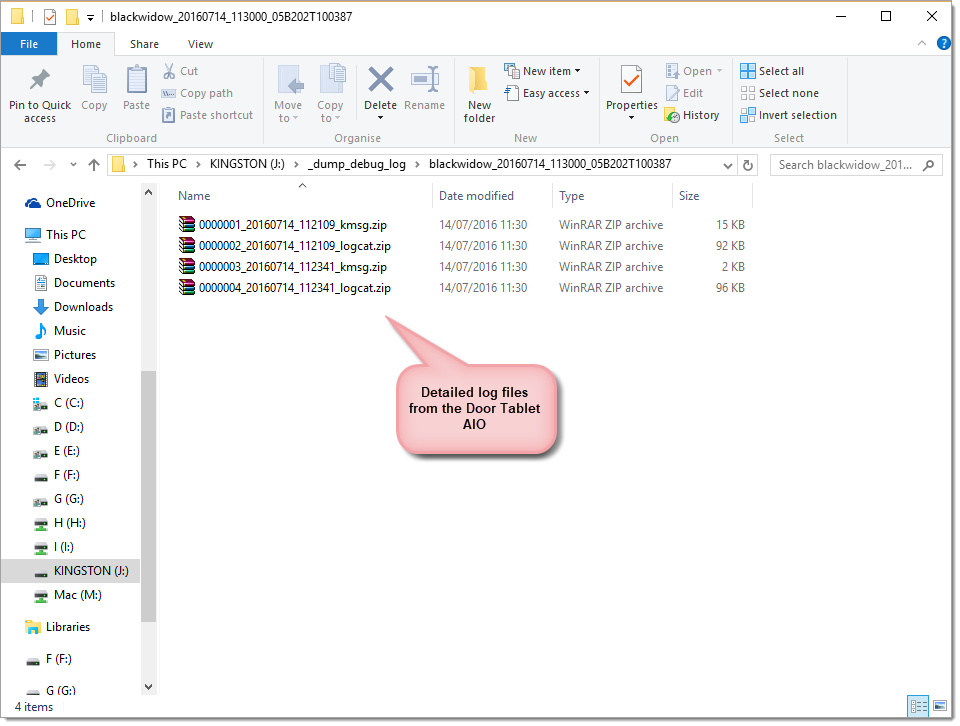

And the actual files are here, too:

Email logs
Email your zip files to us upon request. Use
