Flexible Display

From Door Tablet 9.1.3 Door Tablet includes a new feature that allows you to design the "Single Room Display" in any way you like. The objects and interactive features of the display are all sitting on a flat canvas and you decide where each object is shown and how it looks.

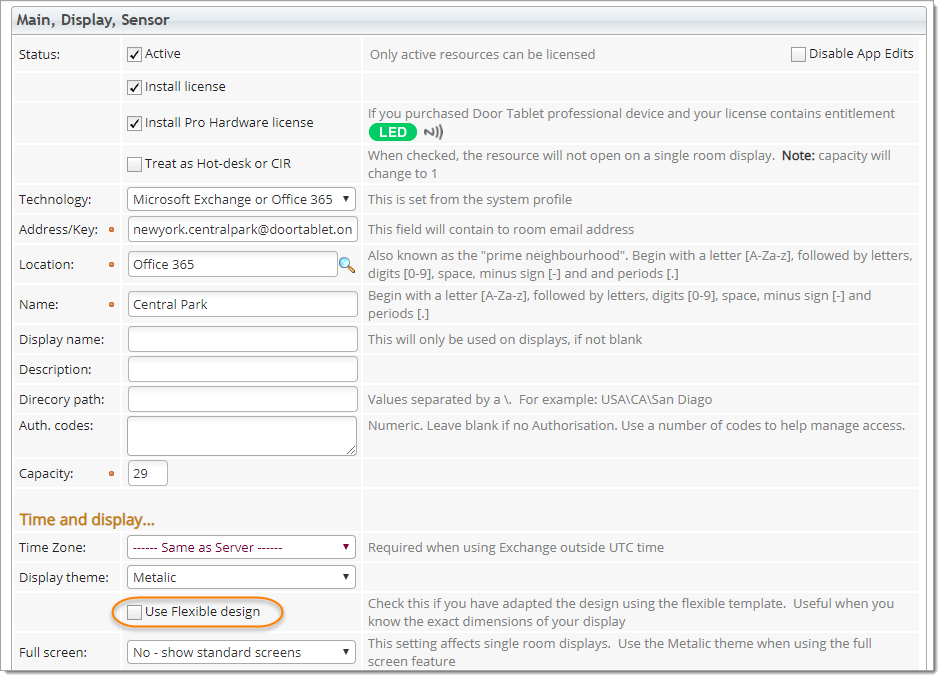

To use the feature, in the space records you will need to indicate that you wish to use this feature, and then add your CSS in the normal way.


Note: from V10.0.11 you can install a style sheet but not load the Base CSS at all. This gives you complete freedom to set your own CSS without the need to reset the Base CSS first. To achieve this simply name your style sheet to include the following string "rem_". For example, your CSS file could be called "rem_Mystyles.css"

If you plan to implement any flexible design we recommend implementing the following line at the start of your CSS style-sheet:


#roomDisp {position: fixed; overgrow: hidden; height: 100%; width:100%;}

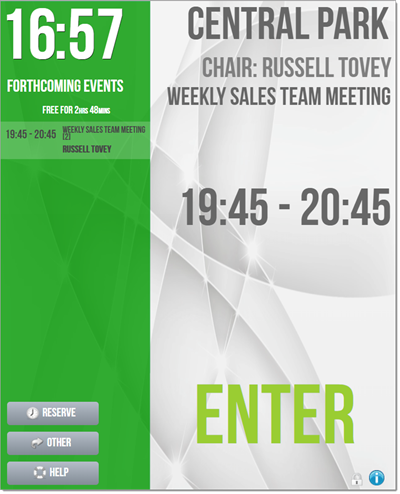

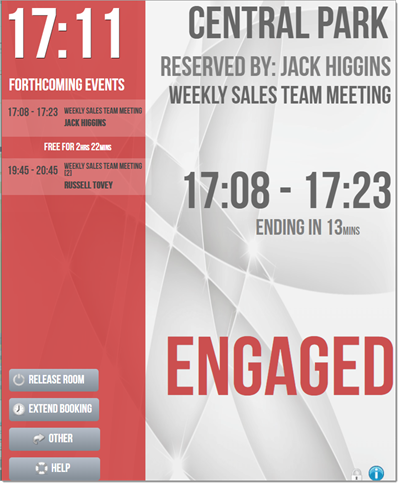

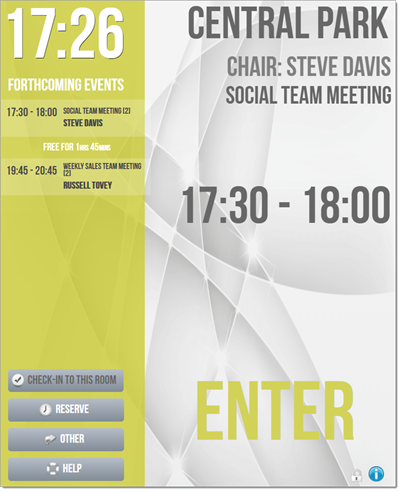

You can see multiple examples of flexible branding below which you can use. This first design is for our AIO devices, which has been set to landscape mode. This display uses the standard metallic background.



#roomName, #nbrName, #schedName, #wcHeader, #clusterName, #floorplanName, #airportName {color: black !important;}
#roomDisp {font-family: "BebasNeue", "Bebas Neue", 'BebasNeueRegular', 'Oswald';}
#lightStatus {width: 100%; float: none; right: -26vh !important; position: absolute; transform: rotate(310deg); top: 59vh; font-size: 22.5vh;}
#meetingList {float: left; width: calc(100% - 505px); overflow-y: auto; top: 20vh; position: absolute;}
#roomNameText {position: absolute; top: 4vh; right: 30vh; font-size: 12vh; width: 55vh;}
#roomNameText{color: #F66A69;}
#upcoming {overflow: hidden; padding: 0.75vh 0 0 1.5vh; height: 5.2vh; font-size: 3.5vh; vertical-align: bottom; left: 0vh; top: 25vh; position: absolute;}
#upcoming {top: 13.5vh; right: 3vh; position: absolute;}
#curHour, #curMin, #curSec {font-size: 12.5vh; top: -1vh; position: absolute; margin-left: 10vh;}
#curWeekDay {top: 7vh; right: 100vh; transform: rotate(270deg); position: absolute; font-size: 5vh;}
#curSec {right: 125vh; position: absolute;}
#roomDisp {font-family: "BebasNeue", "Bebas Neue", 'BebasNeueRegular', 'Oswald'; position: fixed; overflow: hidden; height: 100%; width: 100%;}
#actionButtons {position: absolute; left: 0.5vh; top: 93.5vh;}
#times {width: 100%; height: 35vh;}
#meetingOwners, #curMeetTime, #welcome, #meetingSubject, #roomName {border-bottom-width: none !important; border-bottom-style: none !important; border-bottom-color: none !important;}
#upcoming {vertical-align: top; padding-right: 10px; line-height: 30px; top: 18vh;}
#meetingList {float: left; width: calc(100% - 505px); overflow-y: auto; top: 20vh; position: absolute;}
#upcoming {top: 15vh;}
#curMeetTime, #curMeetTime.meetNext {color: black !important; position: absolute; top: 36vh; right: 28vh; width: 35vw;}
#meetingChair {font-size: 8vh; position: absolute; right: 21vh; top: 28vh; width: 60vh;}
#meetingSubject {width: 99vh; color: black; right: 6vh; text-align: -webkit-center; top: 14.5vh; position: absolute; font-size: 9.5vh;}
#assist {visibility: hidden; Position: absolute; top: -5vh; left: 1vh; width: 125px; text-align: center;}
#checkin {font-weight: bold; top: 12vh; position: absolute; left: 80vh; height: 8vh; width: 45%;}
#meetProc {right: 46.5vh; top: 78vh; position: absolute; width: 40%;}
#freeRoomsInfo {visibility: hidden; left: 1vh; position: absolute; width: 125px; text-align: center;}
#reserve {position: absolute; top: -5vh; left: 1vh; width: 170px; height: 10vh; text-align: center;}
#reserve.doorBut span {top: 2.5vh; position: absolute; font-size: 6.6vh; left: 2vh;}
#roomDisp.busy {background-image: url('images/bkg/metalic/busy.jpg')}
#release {width: 185px; top: 13.5vh; position: absolute; left: -22vh; height: 6.5vh;}
#extend {top: 13.5vh; position: absolute; left: -49vh; width: 25vh; height: 6.5vh;}
#lightStatus.redTxt {background-image: url(https://www.door-tablet.com/branding/flexbranding/donotenter.png); background-position: 30vw; background-repeat: no-repeat; transform: rotate(0deg); color: transparent; top: 55vh; position: absolute;}
#curMeetProgress {font-size: 4.5vh; display: block; margin-top: -2.5vh; top: 15vh; right: 18vh; position: absolute;}
#subjectNext {visibility: hidden;}
#curMeetTime {width: 35%;}
#lightStatus {width: 100%; float: none; height: 44vh; right: 0;}
#extend.doorBut{width: 26vh;}
.meetingBox {width: calc(100% - 350px) !important;}
.actionIcons {position: absolute; top: 94vh; left: 150vh; width: 62px; z-index: 200;}
.meetingDescr {font-size: 2vh !important; line-height: 2.6vh !important;}
.meetingTime {position: absolute; top: 2vh; width: unset;}
.mChair {font-weight: bold; font-size: 2vh;}
.meetingDescr {position: absolute; top: 1vh; width: calc(70% - 2.5vh);}
.freeTimeBox {width: 49% !important;}
.img_checkin, #secsToEnd{visibility: hidden;}
.doorBut span {display: flex; font-size: 5vh; font-weight: normal; vertical-align: baseline; line-height: 5vh; height: 1vh;}
.img_clock, .img_suspend {visibility: hidden;}
.doorBut span {display: flex; font-size: 5vh; font-weight: normal; vertical-align: middle;}
.doorBut span:nth-child(2) {margin-right: unset;}

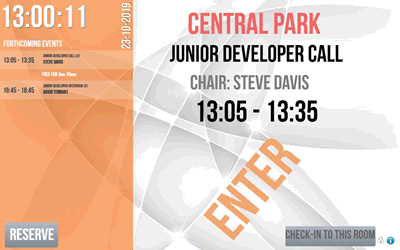

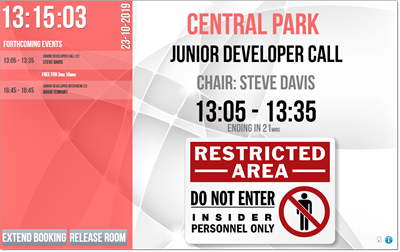

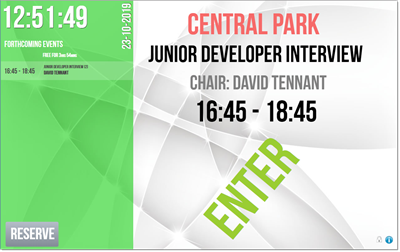

The following design is for an iPad in landscape mode:




#roomDisp {position: fixed; overgrow: hidden; height: 100%; width:100%;}
#roomDisp {font-family: "BebasNeue", "Bebas Neue", 'BebasNeueRegular', 'Oswald';}
#lightStatus {width: 100%; float: none; right: -7vh !important; position: absolute; transform: none; top: 36vh; transform: rotate(0deg); text-shadow: 1px 1px black !important; background-repeat: no-repeat; height: 200%; width: 60% !important; font-size: 0vh;}
#roomNameText, #meetingSubject,
#meetingList {float: left; width: calc(100% - 500px); overflow-y: auto; top: 16vh; left: 0vh; position: absolute;}
#curMeetTime.meetNext, #curMeetTime {color: #676767 !important; top: 10vh;}
#roomNameText {position: absolute; top: -1vh; right: 1vh; text-shadow: 1px 1px black;}
#upcoming {overflow: hidden; padding: 0.75vh 0 0 1.5vh; height: 5.2vh; font-size: 3.5vh; vertical-align: bottom; top: 8.5vh !important position: absolute; text-shadow: 1px 1px black !important;}
#curHour, #curMin, #curSec {font-size: 13vh; top: 0vh; position: absolute; margin-left: 10vh;}
#curSec {margin-left: 16.5vh;}
#curMin {margin-left: 11.9vh; left: 1vh}
#curHour{margin-left:1vh !important; left: 1vh;}
#curDayDisp {font-size: 10vh; margin-top: 3.5vh; margin-left: 1.2vh; position: absolute; right: 40.5vh; top: 7vh;}
#roomDisp {font-family: "BebasNeue", "Bebas Neue", 'BebasNeueRegular', 'Oswald'; position: fixed; overflow: hidden; height: 100%; width: 100%;}
#actionButtons {position: absolute; left: 0.5vh; top: 93.5vh;}
#times {width: 100%; height: 35vh; transform: rotate(0deg); right: 2vh; position: absolute; top: -2.5vh;}
#meetingOwners, #curMeetTime, #welcome, #meetingSubject, #roomName {border-bottom-width: none !important; border-bottom-style: none !important; border-bottom-color: none !important;}
#upcoming {overflow: hidden; padding: 0.75vh 0 0 1.5vh; height: 5.2vh; font-size: 3.5vh; vertical-align: bottom; top: 12.5vh !important; position: absolute; right: 53.5vh; width: 30%;}
#curSec {margin-left: 16.5vh !important; position: absolute;}
#curMeetTime {position: absolute; top: 10vh; right: -1.5vh; font-size: 9.5vh;}
#curMeetProgress {font-size: 4.5vh; display: block; margin-top: -2.5vh; right: 1vh; top: 20vh; position: absolute;}
#meetingChair {font-size: 4.5vh; position: absolute; right: 1vh !important; top: 23vh;}
#meetingSubject {position: absolute; left: 32vh !important; top: 7vh; width: 56%; font-size: 41px !important; margin-left: 19.5vh;}
#assist {position: absolute; top: -1.5vh; left: 0vh; width: 184px; text-align: center;}
#checkin {font-weight: bold; top: 14.75vh; position: absolute; left: 0vh;}
#meetProc {right: 46.5vh; top: 60vh; position: absolute; width: 40%;}
#freeRoomsInfo {left: 0vh; position: absolute; text-align: center; top: -7vh; width: 18.75vh;}
#reserve {position: absolute; top: -12.5vh; left: 0vh; width: 184px; text-align: center;}
#secsToEnd{visibility: hidden;}
#release {width: 186px; top: 15.4vh; right: 11.5vh; position: absolute;}
#curWeekDay {color: white; position: absolute; right: 20vh; top: 45vh;}
#extend {top: 21vh; position: absolute; right: 37%; width: 60%;}
#roomNameText{width: 80%;}
#roomNameText{left: 36.5vh;}
#meetingChair, #roomName, #curMeetTime, #curMeetProgress, #meetingSubject, #curMeetTime.meetNext {color: gray; !important; text-shadow: 1px 1px black !important;}
#lightStatus.greenTxt{background-image: url('https://www.door-tablet.com/branding/flexbranding/opt/free.png')}
#lightStatus.yellowTxt{background-image: url('https://www.door-tablet.com/branding/flexbranding/opt/busysoon.png')}
#lightStatus.redTxt{background-image: url('https://www.door-tablet.com/branding/flexbranding/opt/busy.png')}
#meetingChair {font-size: 4.5vh; position: absolute; right: 0.5vh !important; top: 21vh;}
.meetingBox{color: white !important;}
.meetingBox {margin: 1px; width: calc(100% - 14px) !important;}
.actionIcons {position: absolute; top: 94vh; left: 68vh; width: 62px; z-index: 200;}
.meetingDescr {position: absolute; top: 1vh; width: calc(75%);}
.meetingTime {font-size: 1.35vh; position: absolute; top: 1.5vh; width: unset;}
.mChair {font-weight: bold; font-size: 1.5vh; position: absolute; right: 10vh; top: 3vh;}
.meetingDescr {position: absolute; top: 1vh; width: calc(85% - 2.5vh);}
.licPop {top: -1vh; position: absolute !important;}
.mSub {font-size: 15px !important; right: -3.5vh !important; position: absolute;}#subjectNext{visibility: hidden;}

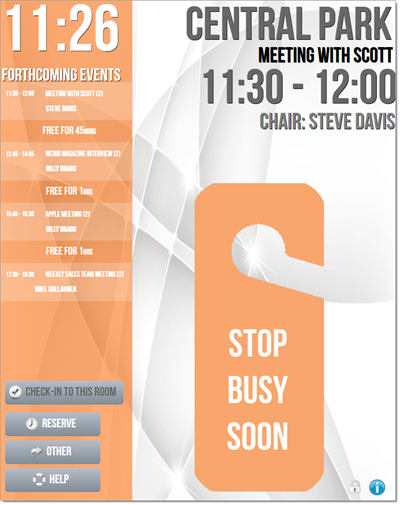

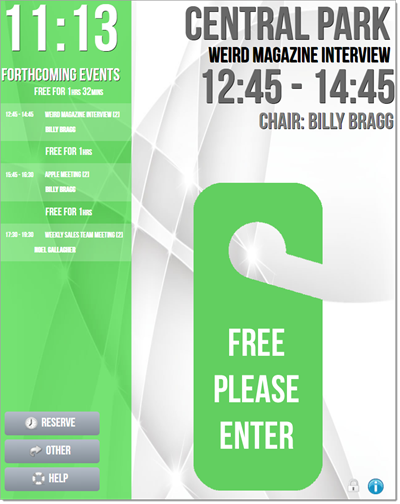

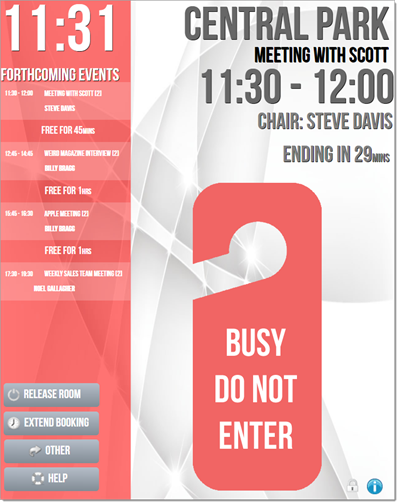

The final design is for one of our AIO devices on portrait mode:


#roomDisp {font-family: "BebasNeue", "Bebas Neue", 'BebasNeueRegular', 'Oswald';}
#lightStatus {right: -15.5vh !important; position: absolute; top: 73vh; font-size: 17vh;}
#lightStatus.redTxt {right: -16.5vh !important; top: 64vh; color: #CB4F4F !important;}
#meetingList {float: left; width: calc(100% - 505px); overflow-y: auto; top: 20vh; position: absolute;}
#roomNameText {position: absolute; top: -1vh; right: 1.5vh;}
#upcoming {overflow: hidden; padding: 0.75vh 0 0 1.5vh; height: 5.2vh; font-size: 3.5vh; vertical-align: bottom; left: 0vh; top: 25vh; position: absolute;}
#curHour, #curMin, #curSec {font-size: 14.5vh; top: -2vh; position: absolute; margin-left: 10vh;}
#curHour{margin-left: -1vh;}
#curMin{margin-left: 11vh;}
#roomDisp{font-family: "BebasNeue", "Bebas Neue", 'BebasNeueRegular', 'Oswald'; position: fixed; overflow: hidden; height: 100%; width: 100%;}
#actionButtons {position: absolute; left: 35vh; top: 93.5vh;}
#times {width: 100%; height: 35vh;}
#meetingOwners, #curMeetTime, #welcome, #meetingSubject, #roomName {border-bottom-width: none !important; border-bottom-style: none !important; border-bottom-color: none !important;}
#upcoming {vertical-align: top; padding-right: 10px; line-height: 30px; top: 18vh;}
#meetingList {float: left; width: calc(100% - 481px); overflow-y: auto; top: 20vh; position: absolute;}
#upcoming {top: 15vh;}
#curMeetTime.meetCurrent {top: 31vh; width: 44vh; position: absolute; left: 34vh;}
#curMeetTime.meetNext, #curMeetTime, #meetingSubject {color: #676767 !important;}
#curMeetTime {margin: 0 1.6vh 0 1.6vh; font-size: 10.5vh; text-align: center; padding: 1.2vh 0 1.2vh 0; right: -1vh; position: absolute; top: 34vh; width: 44vh;}
#meetingChair {top: 10vh; position: absolute; right: 1vh; font-size: 6.95vw;}
#subjectNext {visibility: hidden; margin: -4vh;}
#meetingSubject {right: -7.5vh; font-size: 5vh; top: 15vh; position: absolute; width: 47vh; margin-right: -4.5vw; margin: none !important;}
#meetingChair {top: 10vh; position: absolute; right: 1vh; font-size: 7vw;}
#meetingOwners {margin: -181px -7.4vh -2px 41vh; font-size: 4.5vh; padding: 1.2vh 0 1.2vh 0; width: 44vh; margin-left: 41vh;}
#assist {position: absolute; top: -1vh; left: -34vh; text-align: center; width: 23.5vh;}
#checkin {font-weight: bold; top: -19vh; position: absolute; left: -61.01vh;}
#meetProc {top: 93.5vh; position: absolute; right: 18vh;}
#freeRoomsInfo {left: -34vh; top: -7vh; position: absolute; text-align: center; width: 23.5vh;}
#reserve {position: absolute; left: -34vh; top: -13vh; text-align: center; width: 23.5vh;}
#curMeetProgress {font-size: 4.5vh; display: block; margin-top: -2.5vh; margin-left: 9vh;}
#release {width: 178px; left: -61vh; top: -19vh; position: absolute;}
#roomDisp {background-image: url('https://www.door-tablet.com/branding/flexbranding/newmetalfree.png') !important;}
#roomDisp.busy {background-image: url('https://www.door-tablet.com/branding/flexbranding/newmetalbusy.png') !important;}
#roomDisp.busysoon {background-image: url('https://www.door-tablet.com/branding/flexbranding/newmetalsoontobebusy.png') !important;}
#extend {top: -13vh; position: absolute; left: -61vh;}
.yellowTxt{color: #D2D258 !important;}
.meetingBox {width: calc(100% - 6px) !important;}
.actionIcons {position: absolute; top: 94.5vh; left: 70vh; width: 62px; z-index: 200;}
.meetingDescr {font-size: 2vh !important; line-height: 2.6vh !important;}
.meetingTime {font-size: 2.5vh; position: absolute; top: 1vh; width: unset;}
.mSub {font-size: 1.75vh !important; line-height: 1.5vh !important;}
.mChair {font-weight: bold; font-size: 2vh;}
.meetingDescr {position: absolute; top: 1vh; width: calc(70% - 4.5vh);}
