ID Sources

From Door Tablet V9.8 we support multiple ID sources.

ID Sources are used when one presents an RFID card to a display and expects the ID to be returned from the server. Until now you would have done the following:

  1. Build a list of users in Door Tablet
  2. Import users using spreadsheet and CSV files
  3. Automatically import data to the same internal store

From this version, users are not imported but instead we access the ID source directly, in real-time.

To use ID Sources you must have a Door Tablet Enterprise Edition licence.

Configure ID Sources

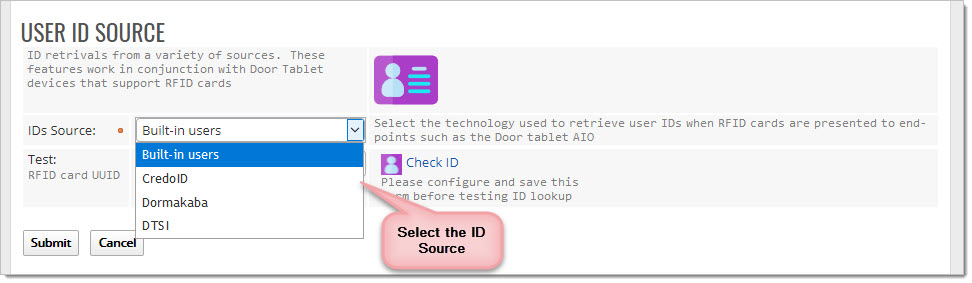

Open the Integration form and configure the sources as follows:

As you will see, the default ID Source is the Door Tablet built-in users. To use another source, further configuration is required. Current options:
  1. CredoID - configure the CredoID setup above first. See here Database 'Door Tablet HELP', View 'Help Documents', Document 'CredoID'
  2. Dormakaba Exivo - configure the Dormakaba setup above first. See here Database 'Door Tablet HELP', View 'Help Documents', Document 'Dormakaba Exivo'
  3. DTSI - you are using DTSI as your source server, and if not, configure the DTSI setup below.

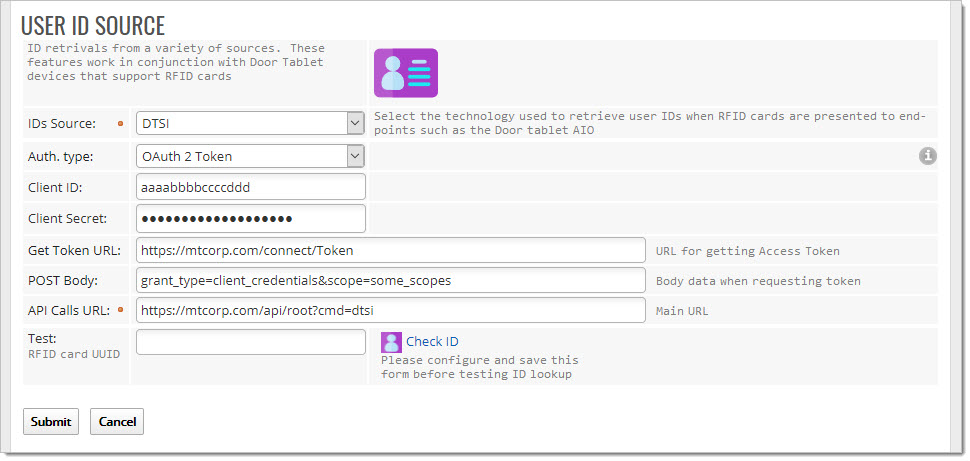

When DTSI is not in use as a server protocol for Door Tablet, you can still use a DTSI subset for ID Source. The configuration of the connection looks like so:

Note: Please save your configuration before you test your ID Source with RFID or NFC cards

Adding roles and overrides

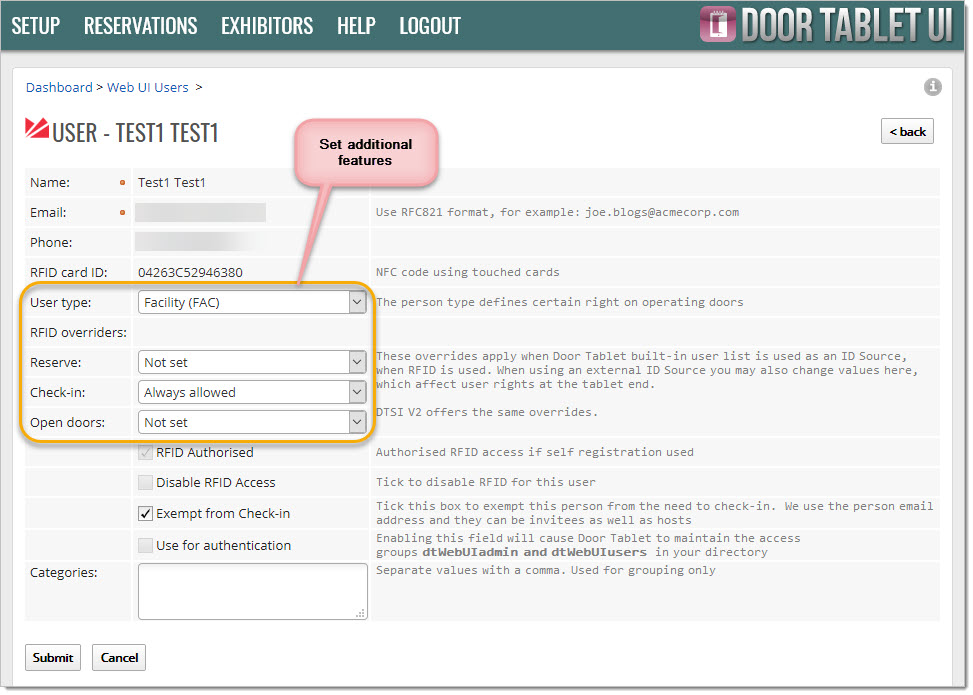

When using ID Sources from external providers, Door Tablet creates a shadow of the user record inside its own store. This allows you to add security features to users that would not normally reside in the ID Source. Take a look at this example:
