One Time Password OTP

From V10.22 of Door Tablet OTP Service is available

The purpose of this feature is to tighten security around the access to the Web UI.

When you turn the feature on, the following happens:

  1. You are challenged for an OTP code
  2. The OTP code is sent to the email address assigned to the user
  3. The user is challenged for OTP periodically, according to your set-up

Platform support
The OTP feature is supported on some of our platforms, starting with Microsoft systems, including Exchange and Microsoft 365. Get in touch if you require OTP support on other platforms.

User experience

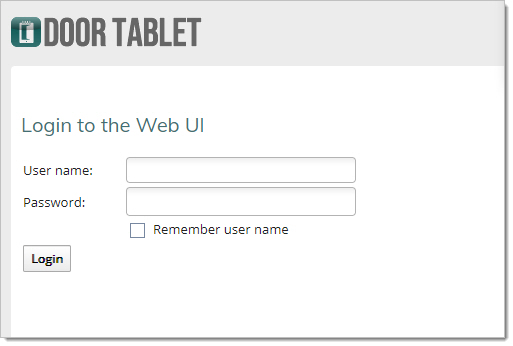

The login page looks normal to begin with...

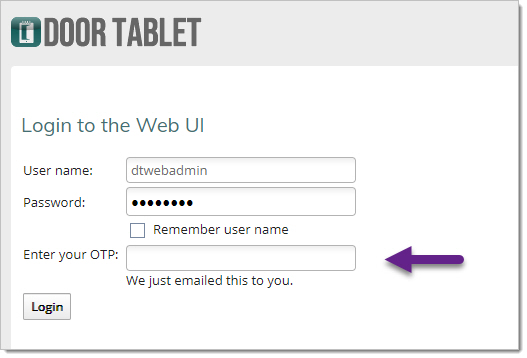

When the user click on Login, the following happens:

Note: once the OTP process is in force, the username cannot be changed. However, if the password is incorrect the user can retry until they use the correct one.

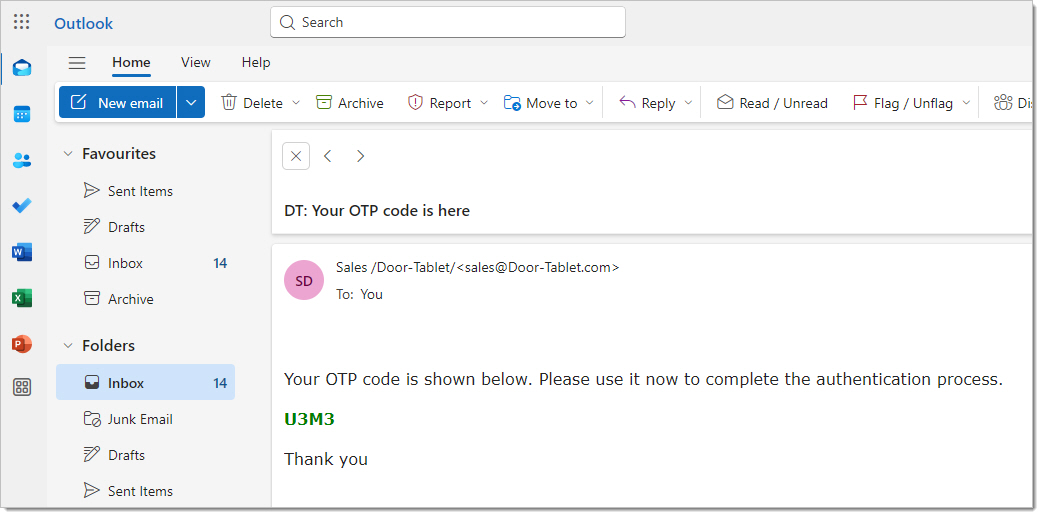

At this point the user will type in the OTP from the email:

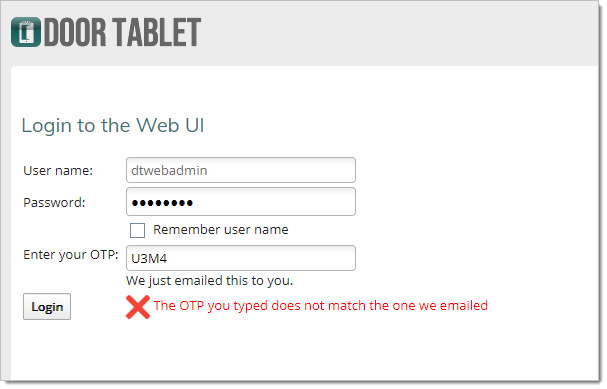

And the usual error handling applies:


What email address are used

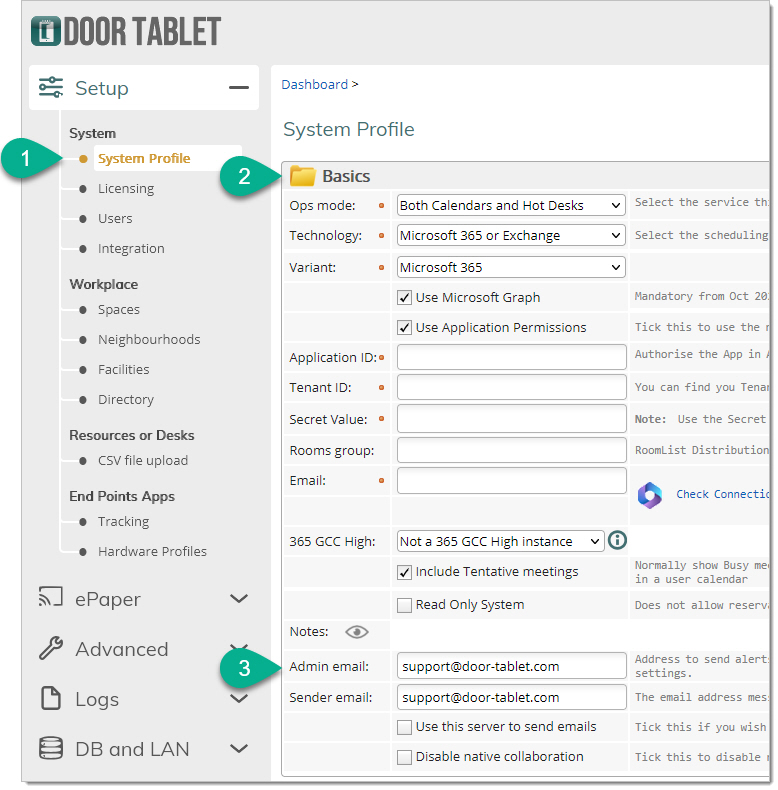

When you use "dtwebadmin", which is the base admin user name, the email address is what is listed in the system profile for admin address:

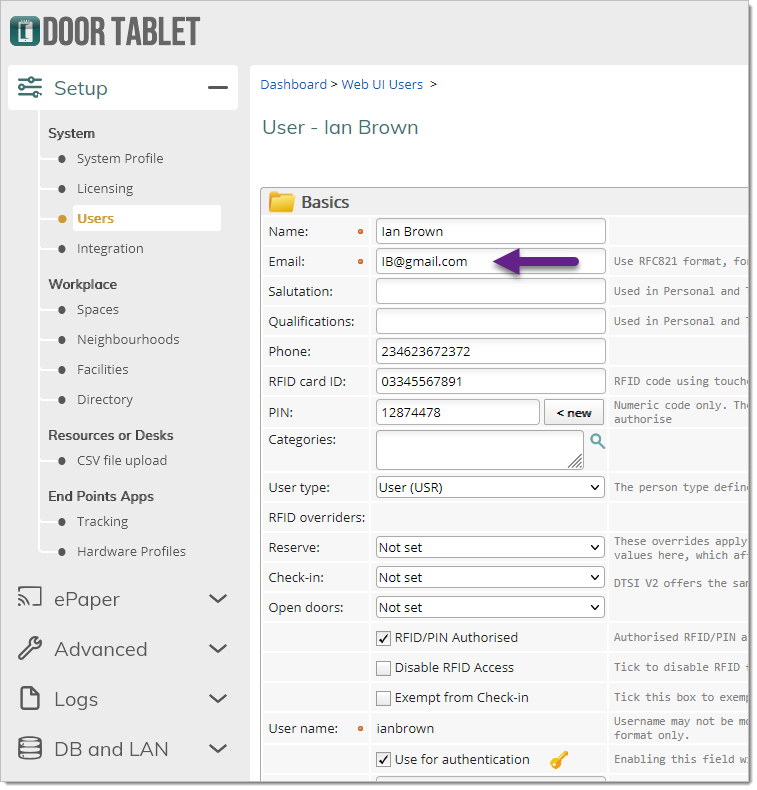

For other users, the email is listed in their user account, as follows:


Configuration

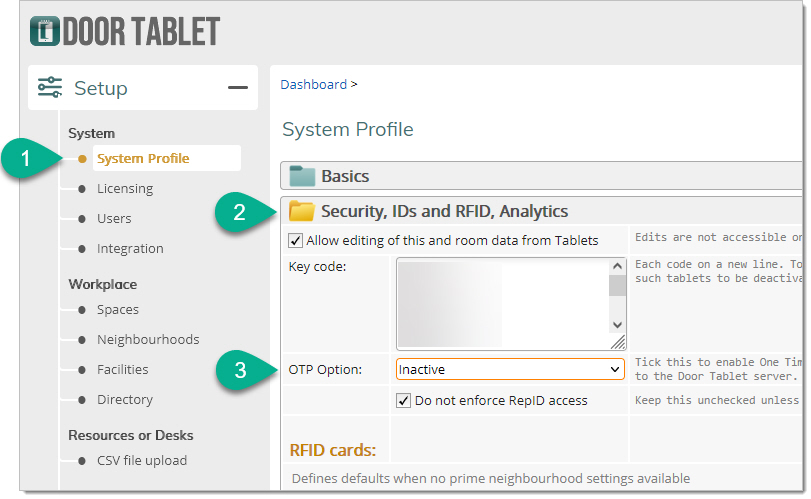

To configure OTP open the system profile:

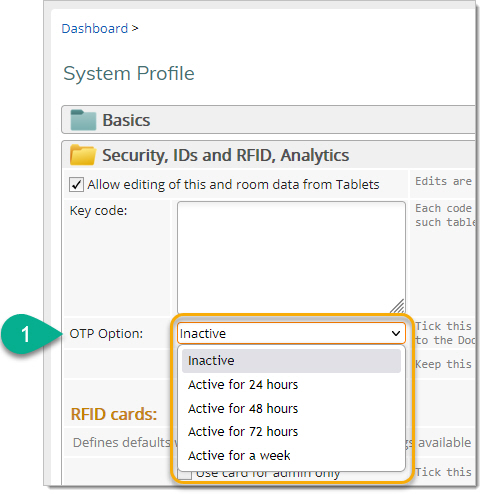

The options are:


Warning:
You must test that Door Tablet can successfully route mail to you. If you cannot get the OTP code you will not be able to login. In the event the mail routing stopped working, for whatever reason, you can do this:
  1. Disable OTP by issuing a server console command
  2. Login to the Web UI
  3. Resolve the mail routing issue
  4. Reactivate OTP
  5. Logout and try again

The console command you need to issue is:
tell doortablet otp

Note:
If you are using an instance on Door Tablet CONNECT you cannot issue console commands. Therefore, contact our support team and they will resolve this for you.

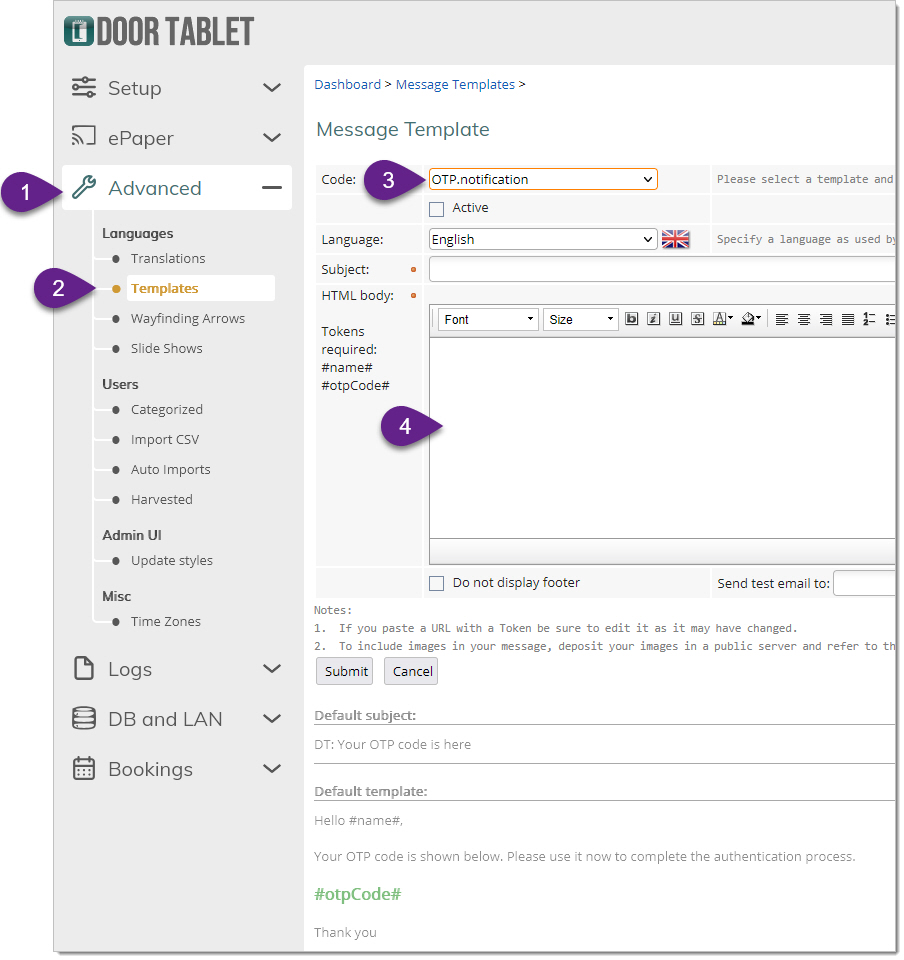

Creating the OTP message
If you like the default message you do not need to do anything here. If you like to change the message or add the message in another language you can do so using "templates":
