QR Codes

With the Door Tablet EPS you can control what QR Codes show on the displays. The following modes apply:
  1. Do not show codes
  2. Show codes
  3. Override some or all codes with your own

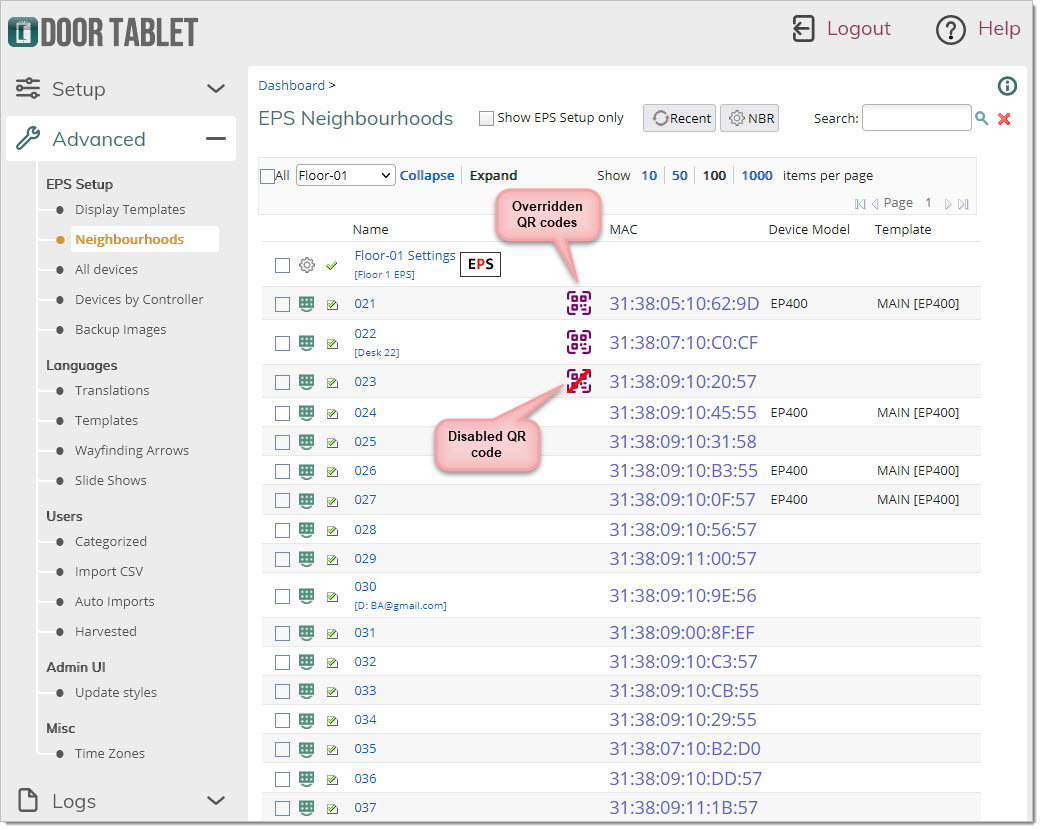

  4. Disable a code from showing on a particular display.

This functionality allows you integrate Door Tablet EPS with your own mobile app.

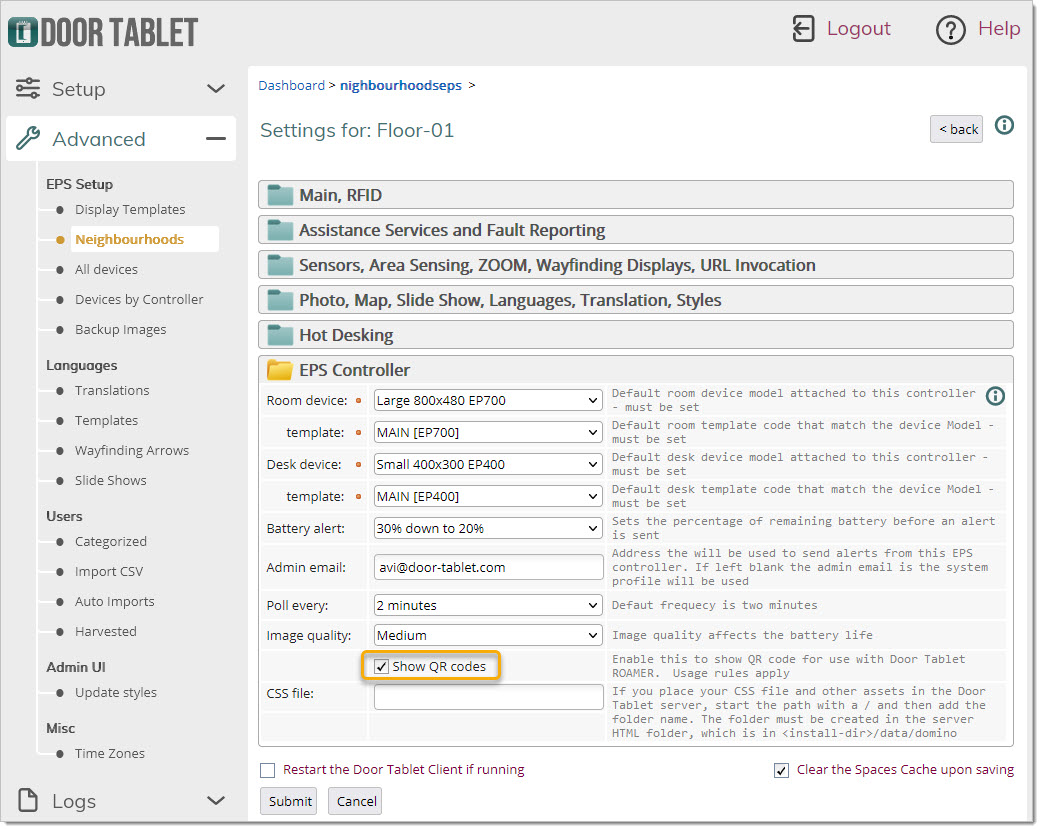

The main control appears in the EPS Control setting record:

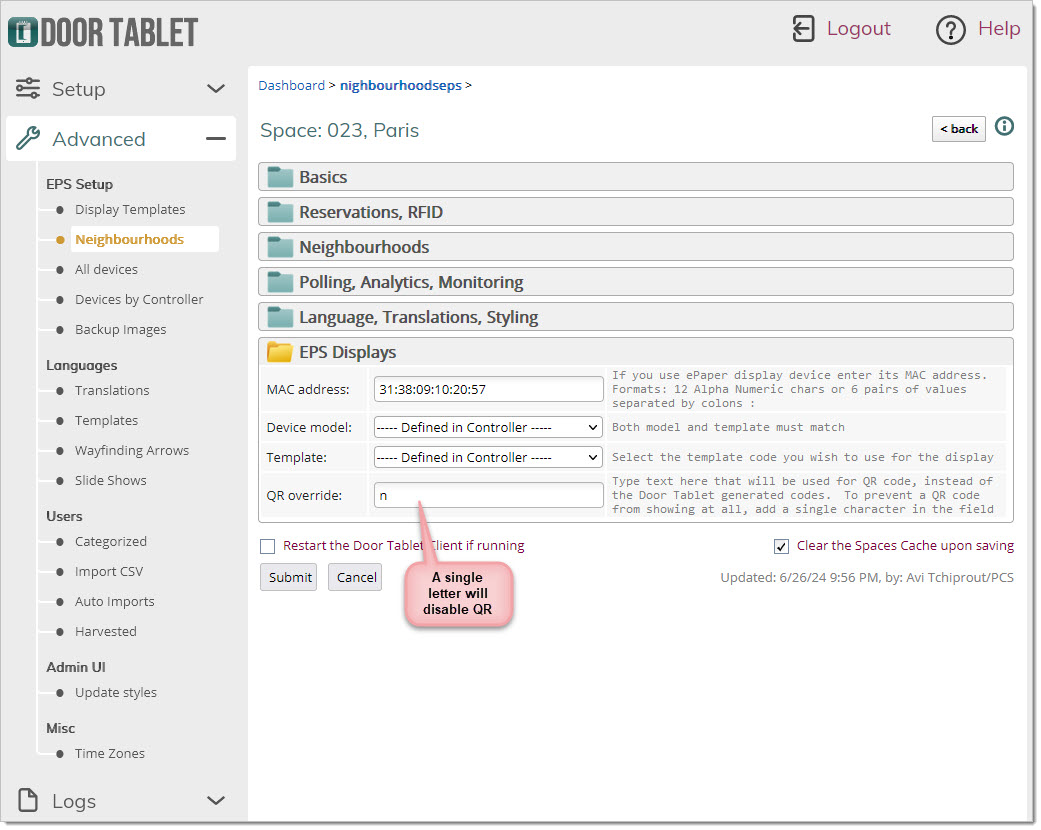

When you add your own QR code, or add a single letter to disable QR code for a specific device:
