Crestron Displays

From version 10.0.10, Door Tablet can run directly on Crestron display hardware. This version also supports pairing with Crestron motion sensors, allowing full integration with Door Tablet’s occupancy-based features.


For information about the General Web application, see: Database 'Door Tablet HELP', View 'Help Documents', Document 'General Web'

Getting Started

    1. Ensure that your device firmware includes the Door Tablet software.
      For confirmation of supported models, contact Door Tablet or your Crestron reseller.

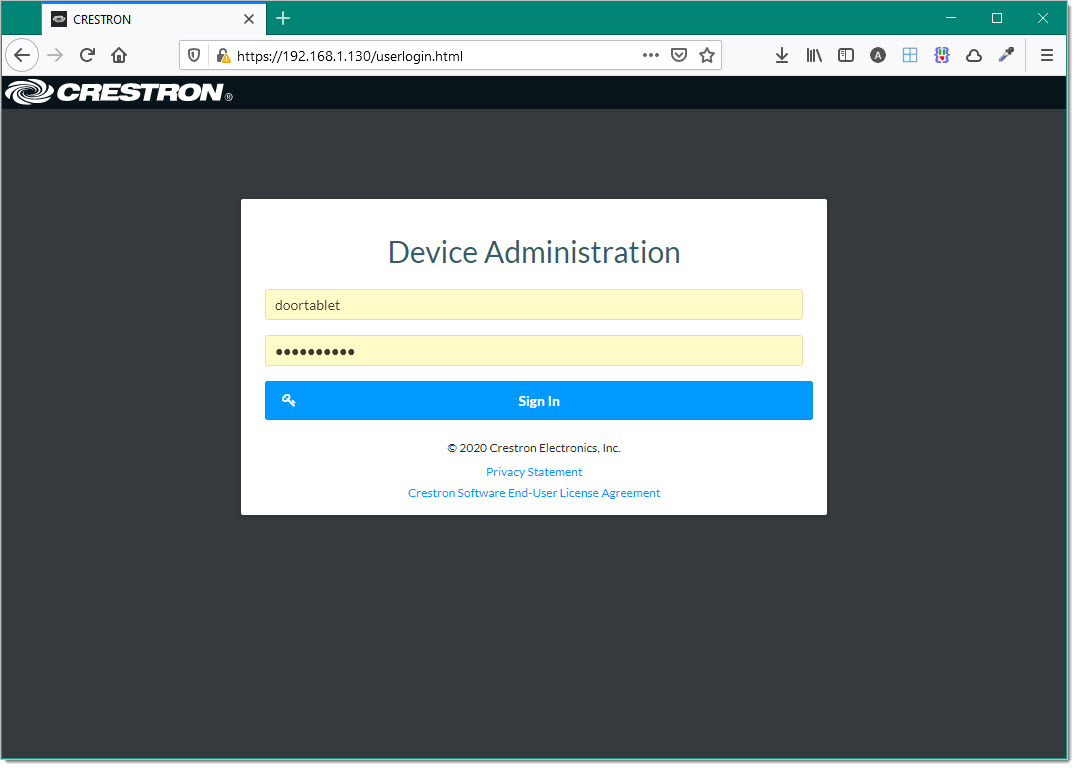

    2. Open a browser on the device and create a username and password.
    3. Log in to the device.
    4. Open Settings.
    5. Scroll down to the Applications tab.

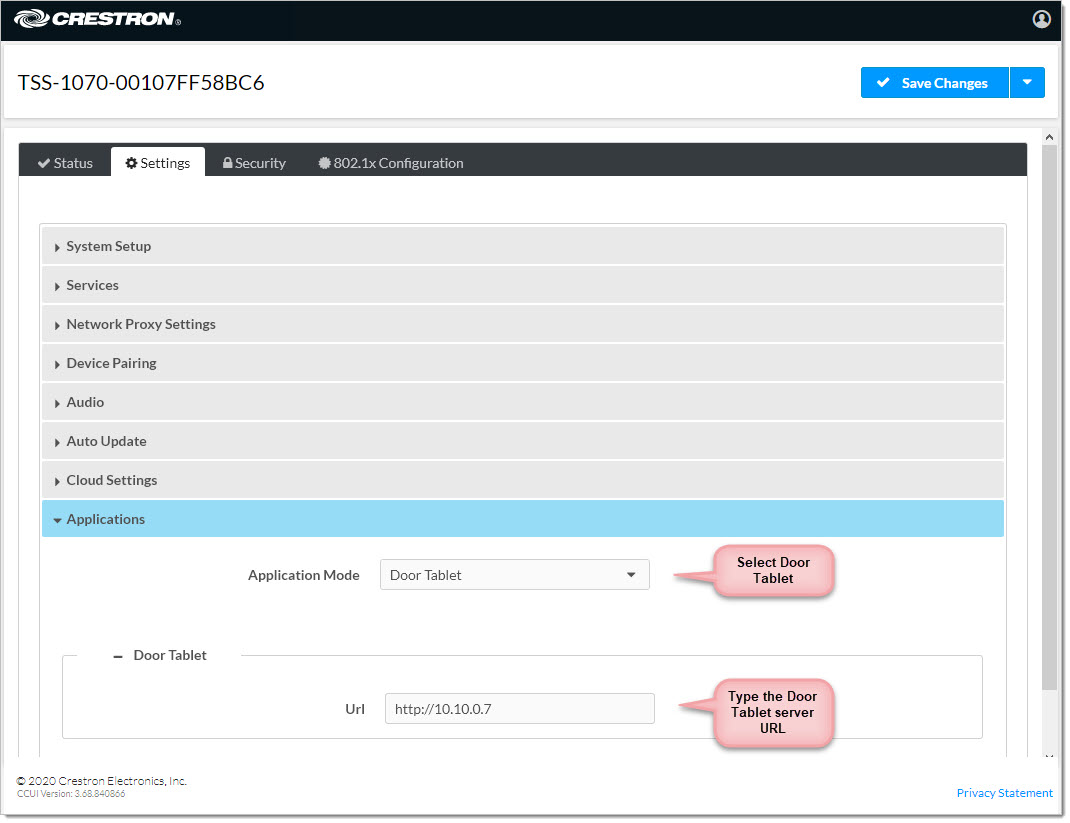

    6. In Application Mode, select Door Tablet.
    7. Enter your Door Tablet server URL.
    8. Pair the device with an Occupancy Sensor.
    9. Configure the Time Zone and NTP settings.
Refer to the images below for detailed guidance.


Your device shows the dashboard

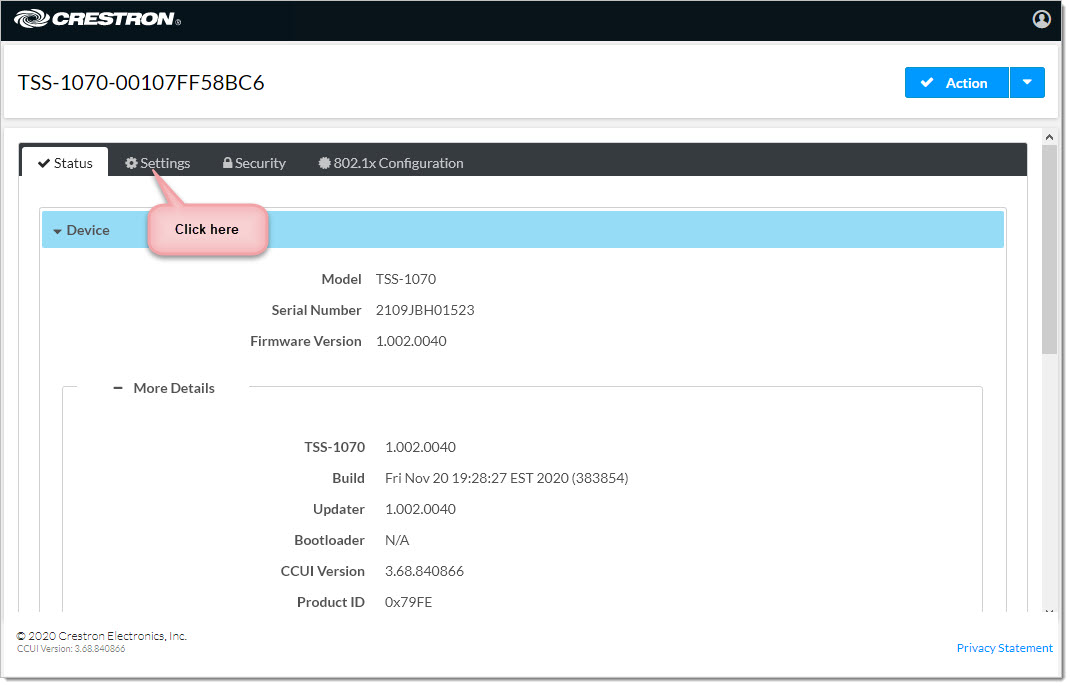

Switch to Settings


About the Door Tablet URL
The URL is used when creating server connections in the Door Tablet app. The value is used as the default address, and you can modify it if needed. Please remember to add a port number if the server was configured to use a non-standard port. By default the Door Tablet server uses port 81 for http. Its easy to change the port number if it conflicts with an existing port, or if you wish to use the default port 80.

Note: if the URL field does not show you can still configure the app by specifying the server address within the app.

You are now ready to save the setting and reboot the device. The Door Tablet app will start after the reboot.
Next step, configure the App, see here Database 'Door Tablet HELP', View 'Help Documents', Document 'Run the Front-end App'

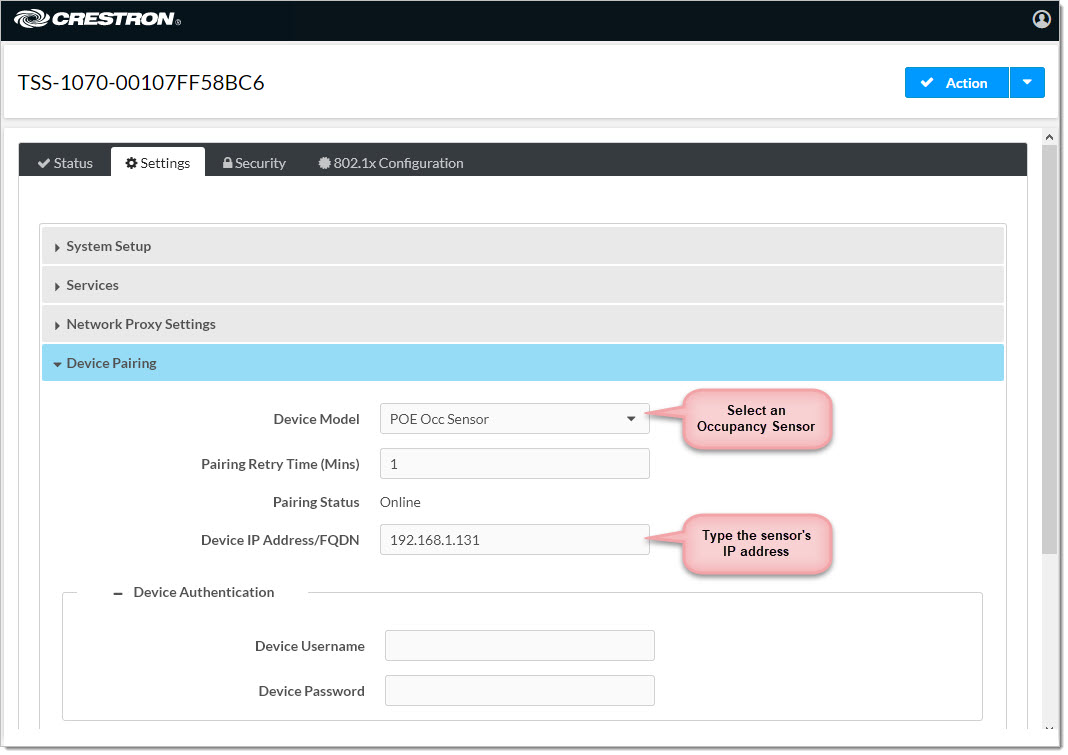

Pairing a Crestron Sensor
If you wish to install a sensor and pair it with the device outside your room, go to Device Pairing, as follows:

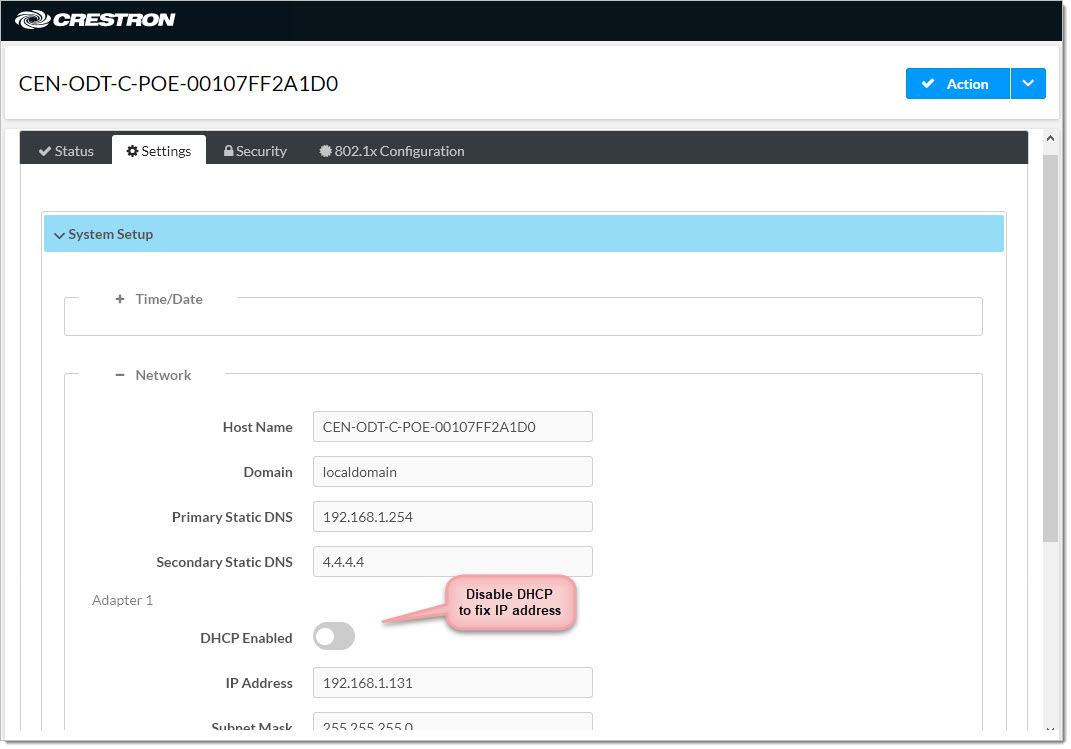

Note: it is recommended that the IP of the sensor is set to be fixed. The display device IP address may remain dynamic.


For directions on enabling Sensor usage in Door Tablet, start here: Database 'Door Tablet HELP', View 'Help Documents', Document 'Software setup'
If you are deploying Door Tablet POE motion sensors, follow directions here: Database 'Door Tablet HELP', View 'Help Documents', Document 'Hardware setup'

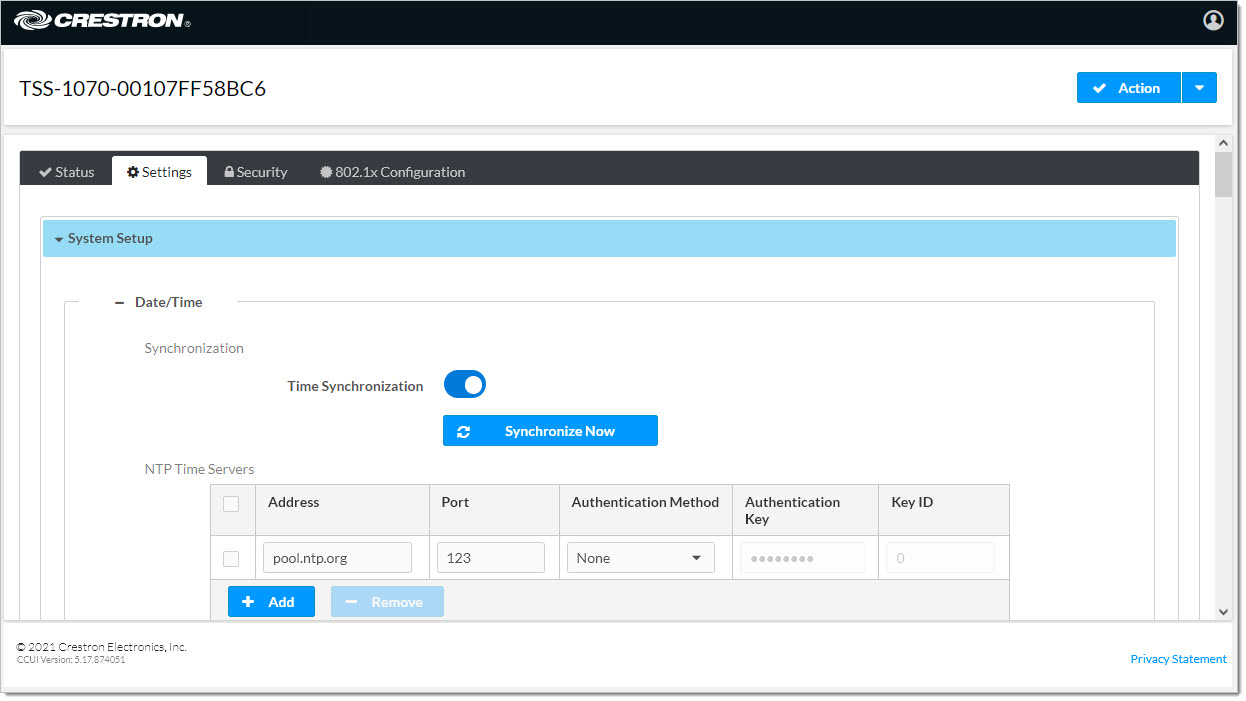

Setting the time
From the same interface navigate to the basic System Setup

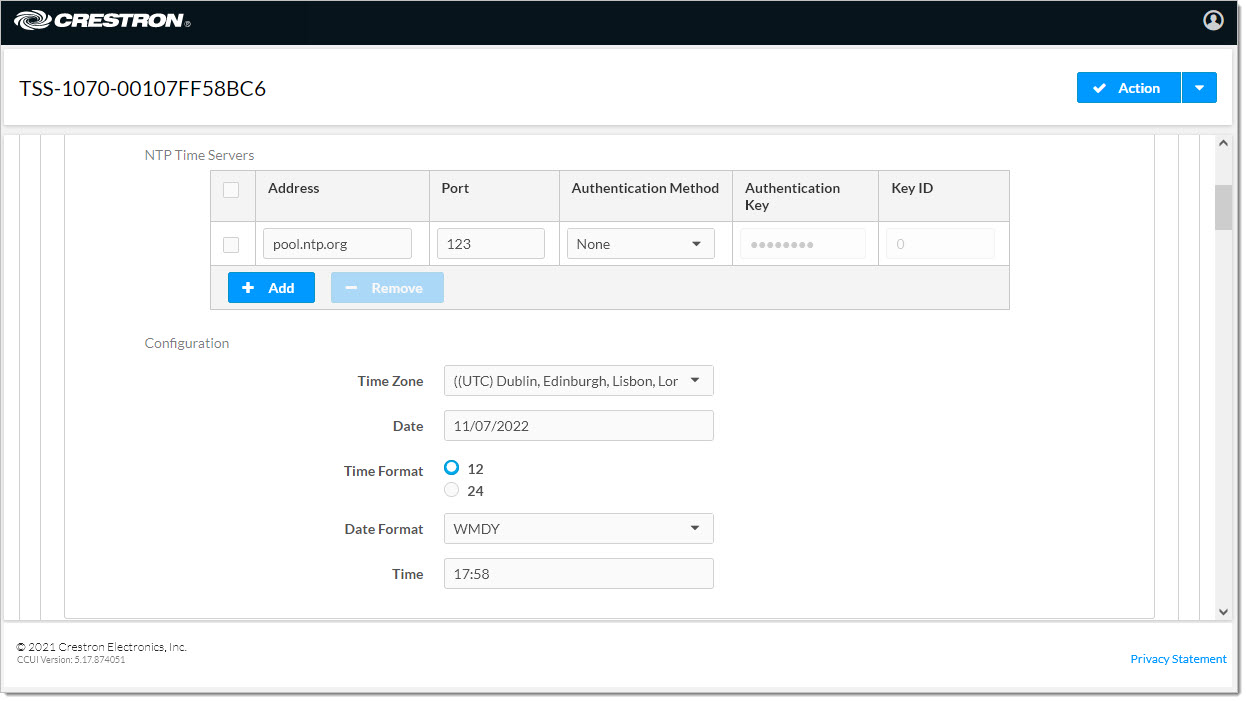

You can now setup the time zone and the time
