Click on images to see them in full screen

Airport Display

From version 5.5, Door Tablet offers an Airport Display. The display will operate in two major modes:


  1. Rotation on a single screen - if you have many meetings to display, Door Tablet will rotate the pages every few seconds in this mode
  2. Multi Screen with no rotation - in this mode the Airport display is opened with a specific page, from 1 to 6, and each screen is a continuation of the previous number
To choose the type of display select the mode before opening the display, as follows:

How we show meetings

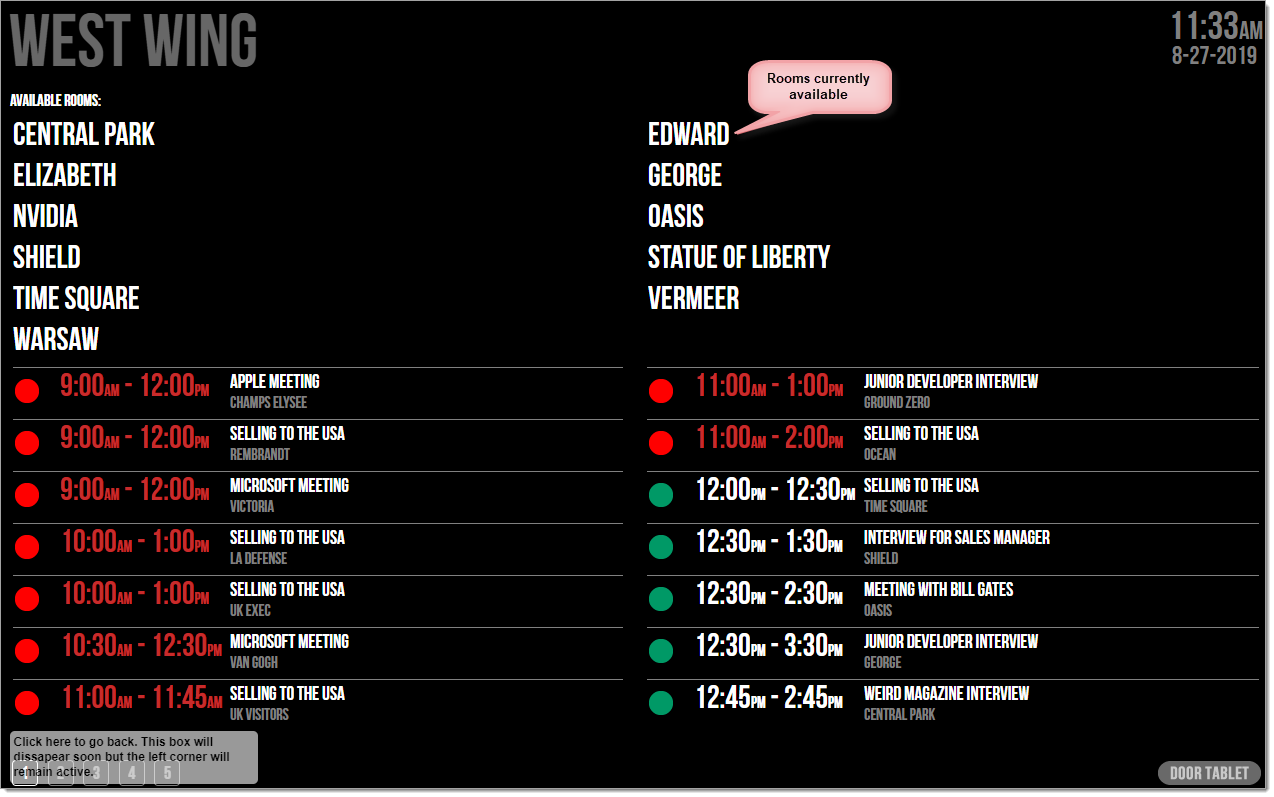

In Airport display meetings are listed in the order of time, regardless of the room or resource they appear in. The primary key for the order is the meeting start time with the end time being the secondary key. Unlike the Door Tablet schedule display, where we use the time bar notation, the Airport display does not show free time. However, as an option you can ask the Airport display to show rooms which are currently free with at least 10 minutes before they become busy again. Free rooms show on the display all the time in a when using rotation style. When using multi screen, free rooms show only on screen 1.

Single rotating screen
In this display Door Tablet pages through all the meeting pages every 10 seconds. Please note:
  1. Slide shows never play on rotating screens, even when there are no meetings
  2. Free rooms and their description always show at the top of the screen
  3. You can set the display not to show free rooms
  4. Every aspect of the display may be modified and branded to your liking
To learn about Slide Shows see here Database 'Door Tablet HELP', View 'Help Documents', Document 'Slide Shows'

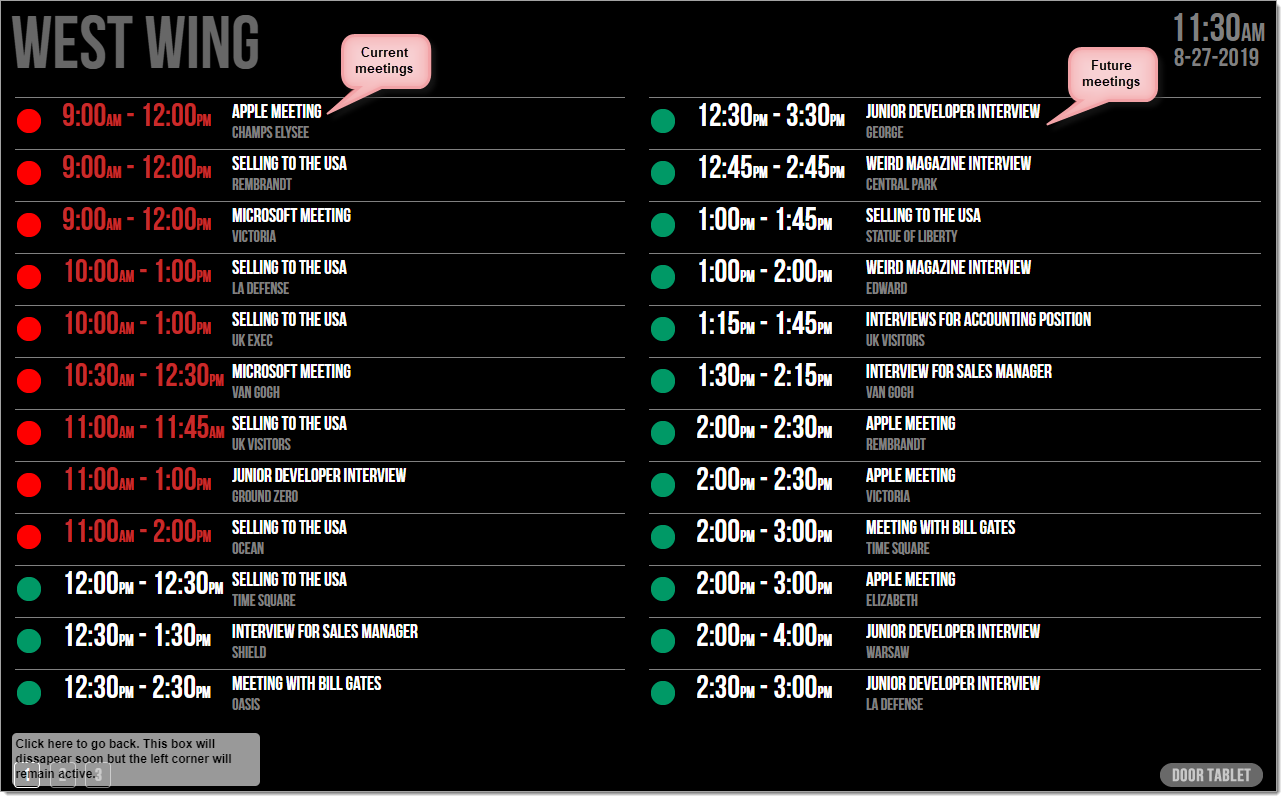

Meetings indicators
Meetings is Airport display show in a way that is easy to instantly understand. Meetings appear in one of three states:
Current - the meeting is underway and is marked in red. A red traffic light shows too
Soon - the meeting will begin in the next 10 minutes or less. An amber traffic light shows too
Future - the meeting is planned for later on today. A green traffic light shows too

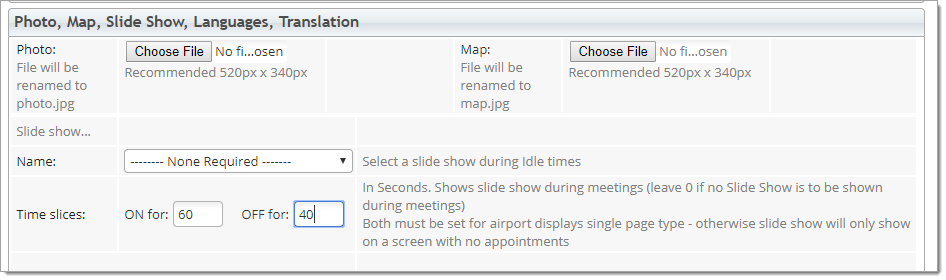

Slide Shows integration
You can use Slide Shows in Airport Displays, as follows:
  1. Use Multi Screen display mode
  2. When there are meetings that are due to begin or current (amber and red), the Slide Show will not show at all
  3. When all meetings are future ones (all green), the Slide Show will show on a "Time Slice" basis - you decide how long to show the slides and how long to show the future meetings
  4. If the are no meeting at all, the slide show will play repeatedly and will not be bound by the time slices
  5. All screens will show the same Slide Show but are not likely to show the same slide as the displays are completely independent of each other
  6. If you specify any of the time slices as 0, the Slide Show will not show
  7. If you make a change to a Slide Show used in Airport Display, this will be reflected on the display within 15 minutes. Please note that Slide Show dedicated displays we check for changes every minute.
Note: you need a license for each of the eens in a multi screen display. For a rotation style display, you need only one Public Display license

About multi screens
Before deploying a multi screen setup, it is useful to understand how the system works. Like in airport set-up, meetings are listed with most recent ones at the top, based on start time. You deploy multi-screen if you expect a lot of meetings to be listed since the system connects to many meeting rooms. You can configure Door Tablet to fit a lot of meetings on fewer displays by reducing text size or using multiple columns. However, text should not be too small so that people can still read the information. The system will fit your meetings nicely in columns and ensure no data is hidden. It is important to know that if you have more meetings then what could fit on the collection of screens, those late meetings will appear as time moves on during the day and early meetings finish. Please note:
  1. Current page indicators do not show
  2. Free rooms show only on the first screen
  3. Slide Shows play only on screens without current meetings
  4. When slides play on screens with meetings, time slices are used
  5. When there are no longer meetings, slide show plays non-stop


Styling
You can easily style all aspect of the Airport Display. The following apply:
  1. Columns - select the number of columns to use. Use columns when your display is wide. Note the use of columns restricts the amount of text available for meeting subject, room name and room description
  2. Column flow - you can choose either newspaper flow and balance flow
  3. Show free rooms or not - these will display above all the meetings
  4. CSS types changes - you can modify text sizes, colours, meeting columns width, line height and more. You can also change to traffic lights, and the appearance of a meeting in any of the above modes. For example you can set the style of meetings that are about to begin to flash.
