Schedule Display

Door Tablet allows you to display meeting space schedules on a large monitor or digital TV. You can place such displays in:
  1. Lobbies
  2. Floor entries
  3. Conference centres and other places. Remember you can create your own neighborhoods. Click here Database 'dt.HELP', View 'Help Documents', Document 'Configure Neighborhoods'. To learn about Welcome display, click here Database 'dt.HELP', View 'Help Documents', Document 'TV Display - Welcome'.
Opening a neighborhood display

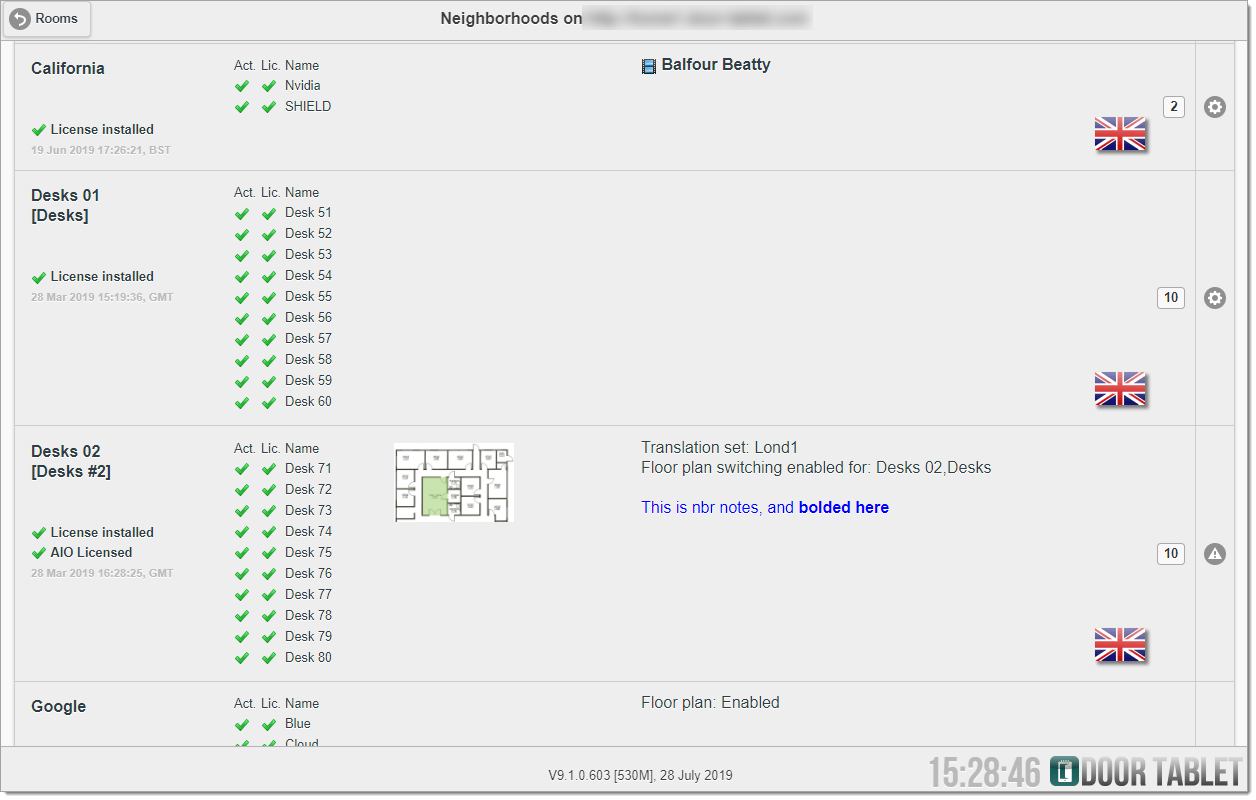

Go to the neighborhood overview:

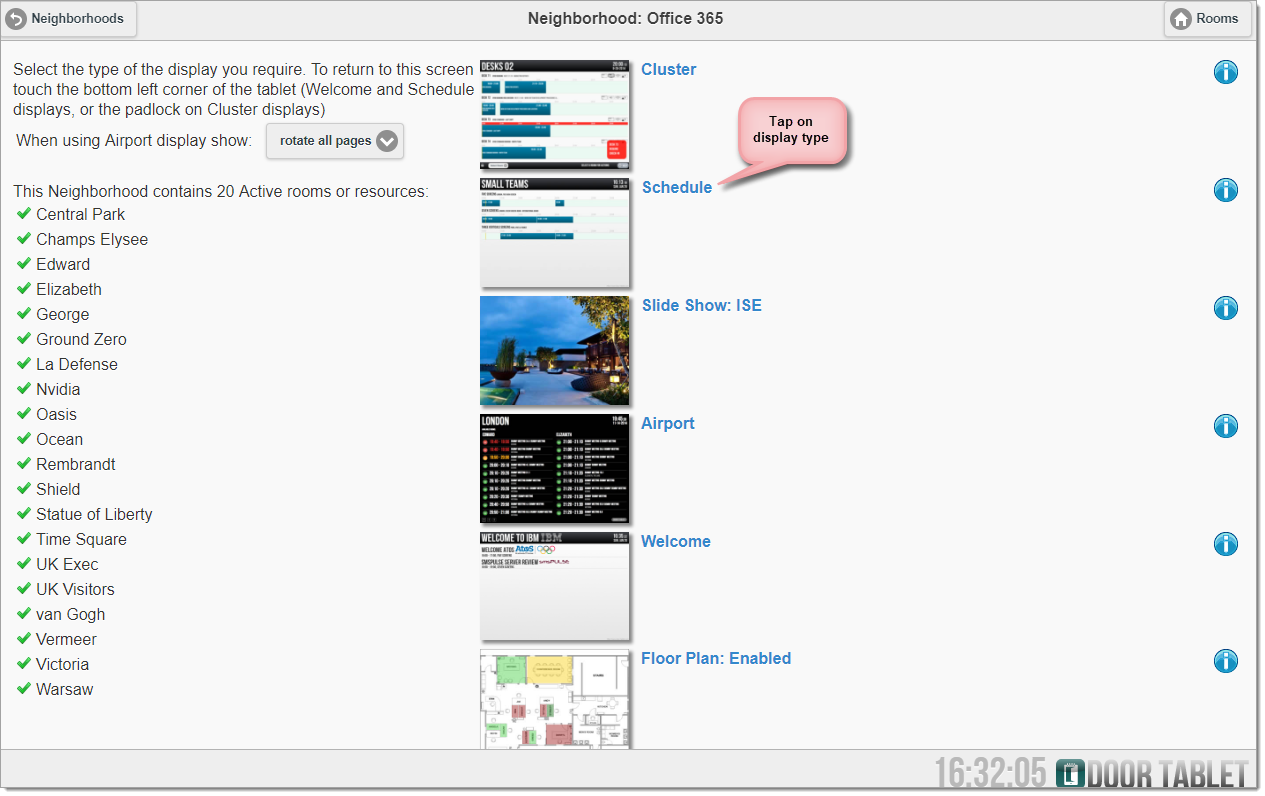

Click on the neighborhood you want to look at. You will see the following screen:


As you can see above, when you open a neighborhood, Door Tablet will show the meeting spaces included in it.

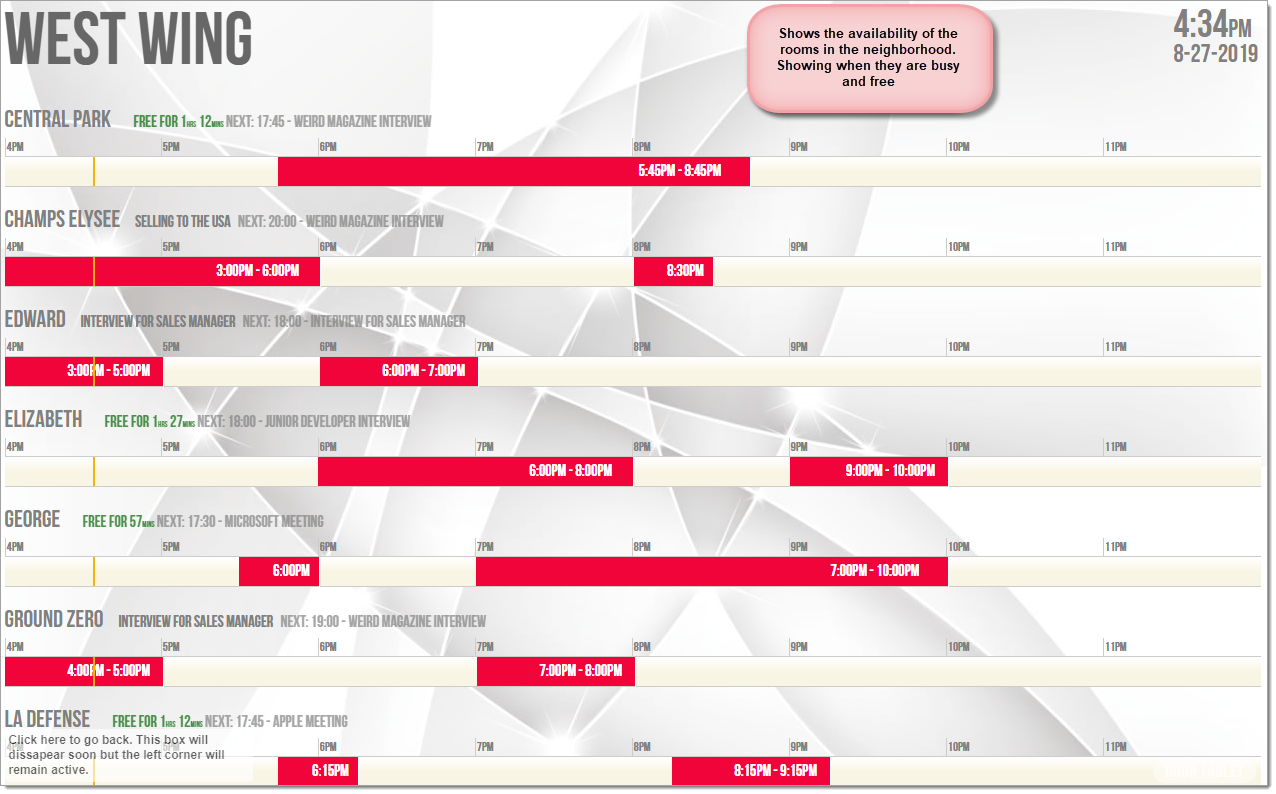

Click or tap the first icon and the schedule display opens:

Door Tablet shows up to 6 meeting spaces in normal display, and up to 20 meeting spaces on condensed display.

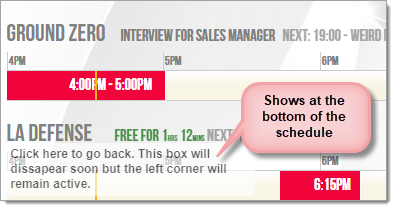

This message will be displayed in the bottom left-hand corner for a short time:

Click when you want to leave that display.


Note: As it is not expected that these displays will be accessible to non-admin users the locking feature available for meeting space Status display is not required.

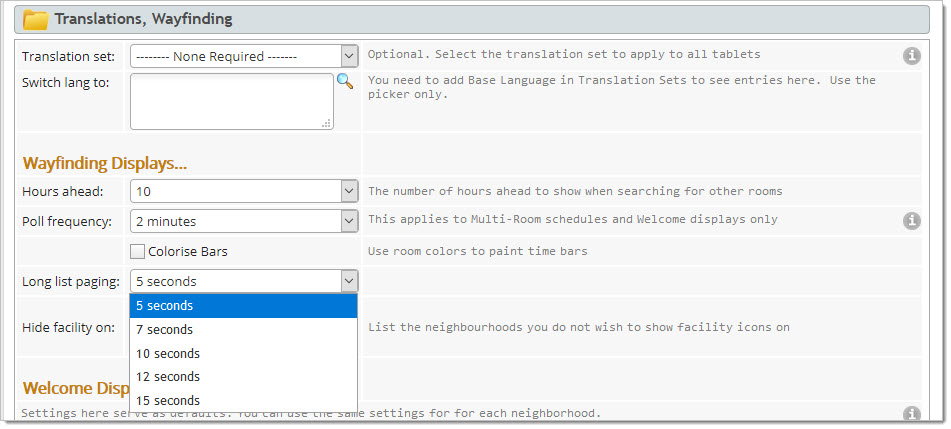

From version 4.2 of Door Tablet, on schedule displays that contain meeting space lists deeper than the monitor, Door Tablet will scroll the display automatically for you, every 5 to 15 seconds.
